GyroidVault is a self-hosted 3D model library and print manager. It helps you organize your STL, 3MF, and Gcode files, keep track of your print history, and group files into project collections.

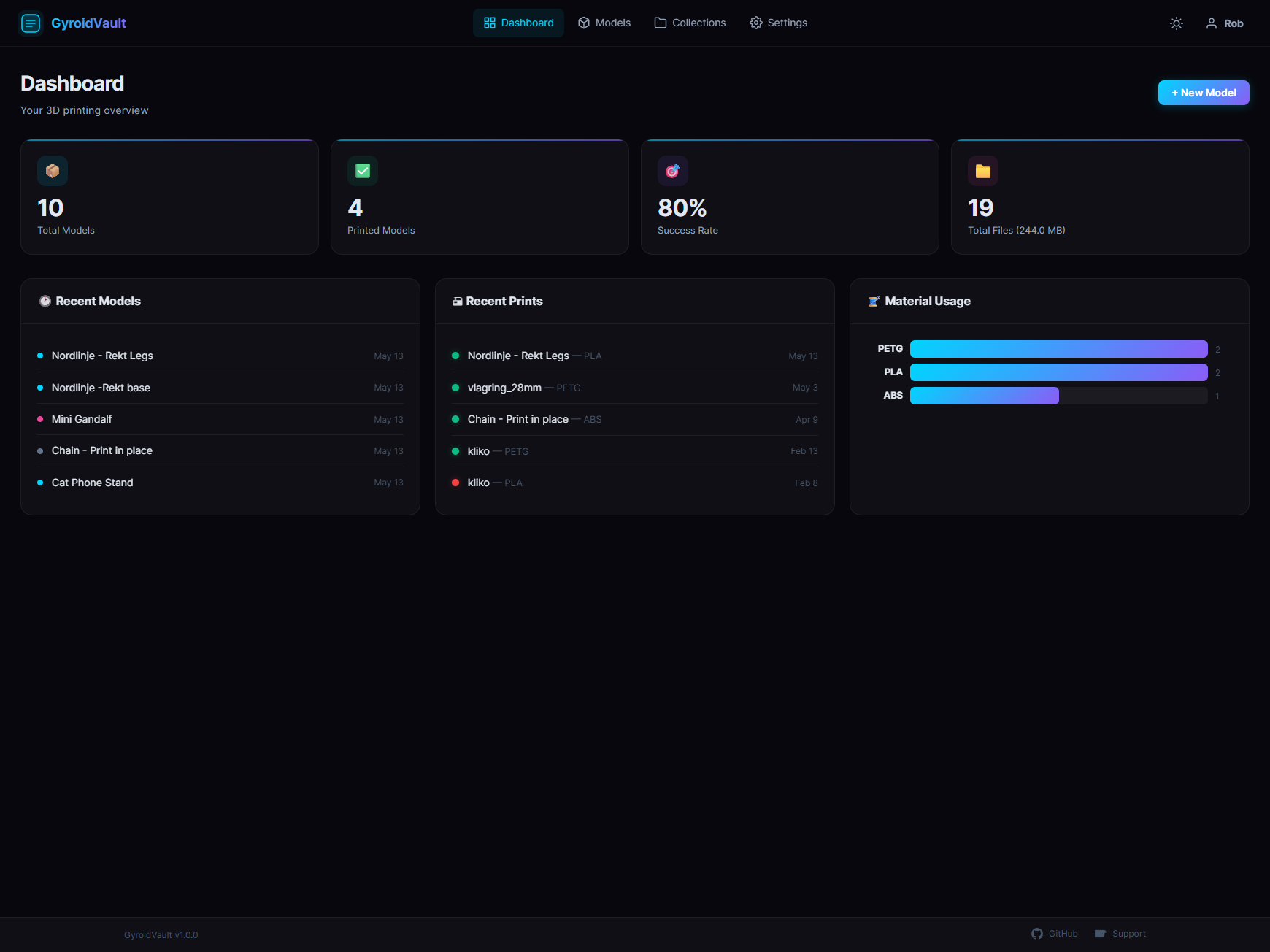

GyroidVault Dashboard

⚠️ Early Release Notice: GyroidVault is a brand-new project and still under active development. You may encounter bugs or rough edges. If you do, please open an issue — your feedback helps make GyroidVault better for everyone!

Screenshots

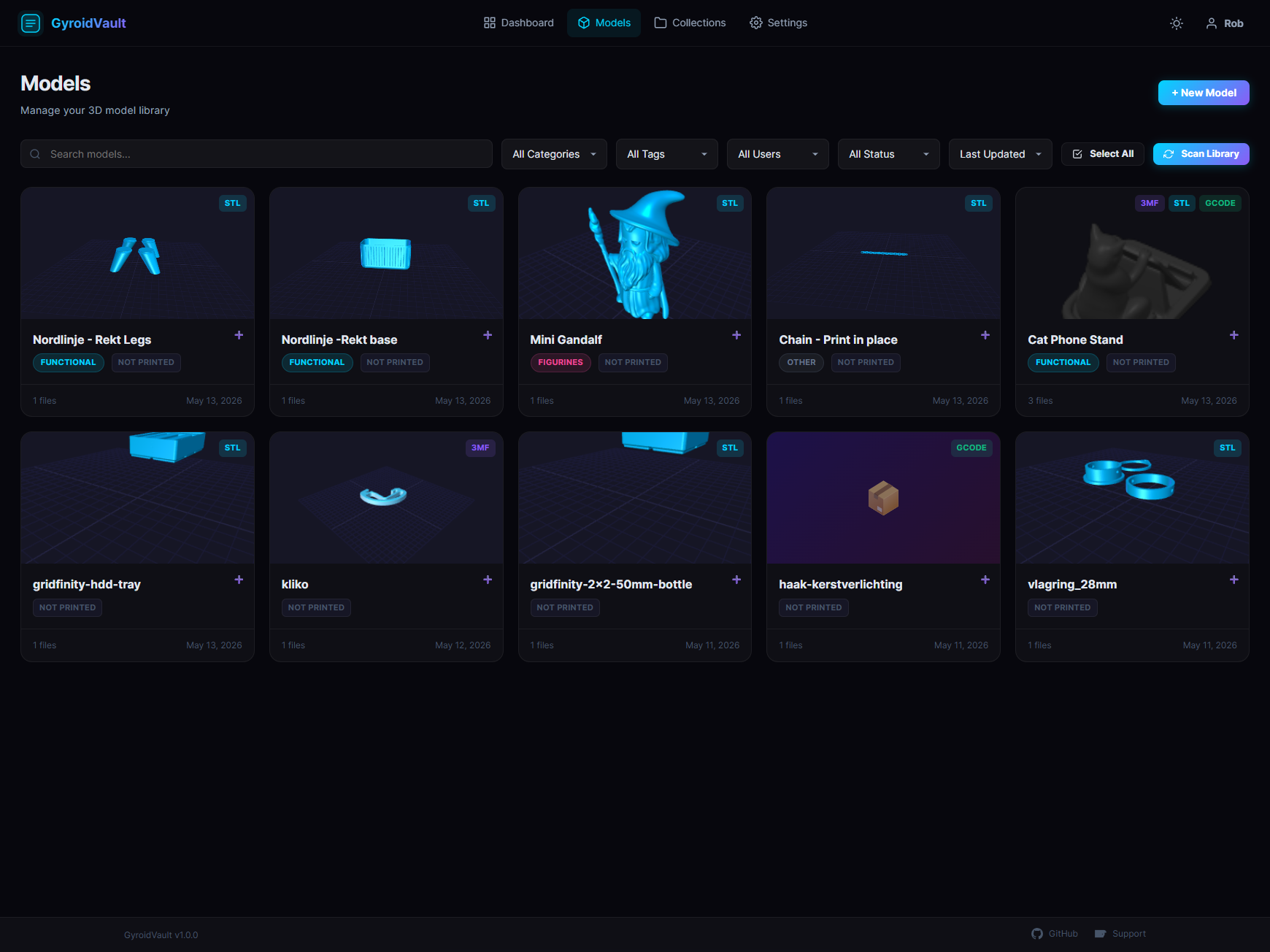

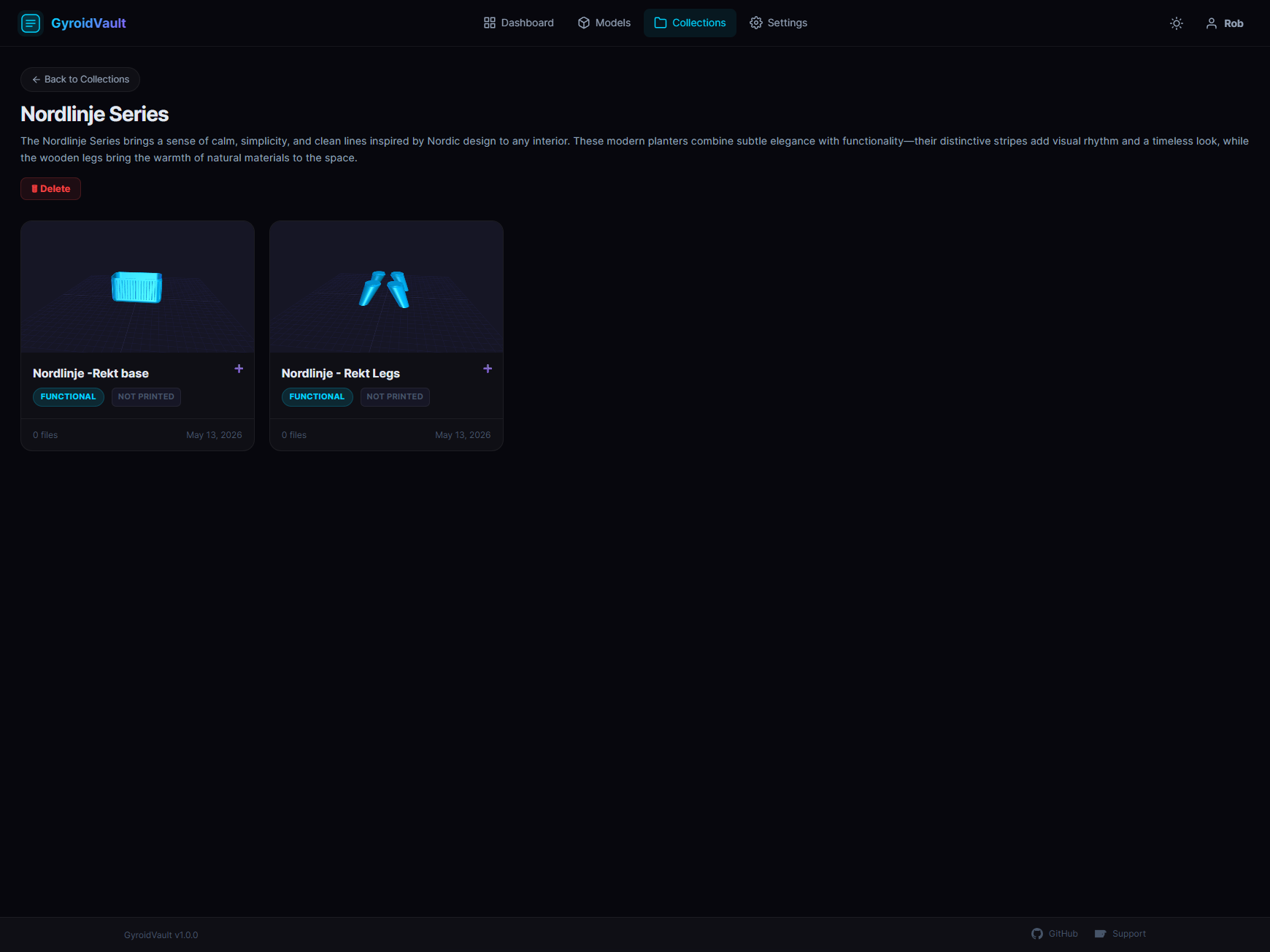

Models Gallery Collections Management

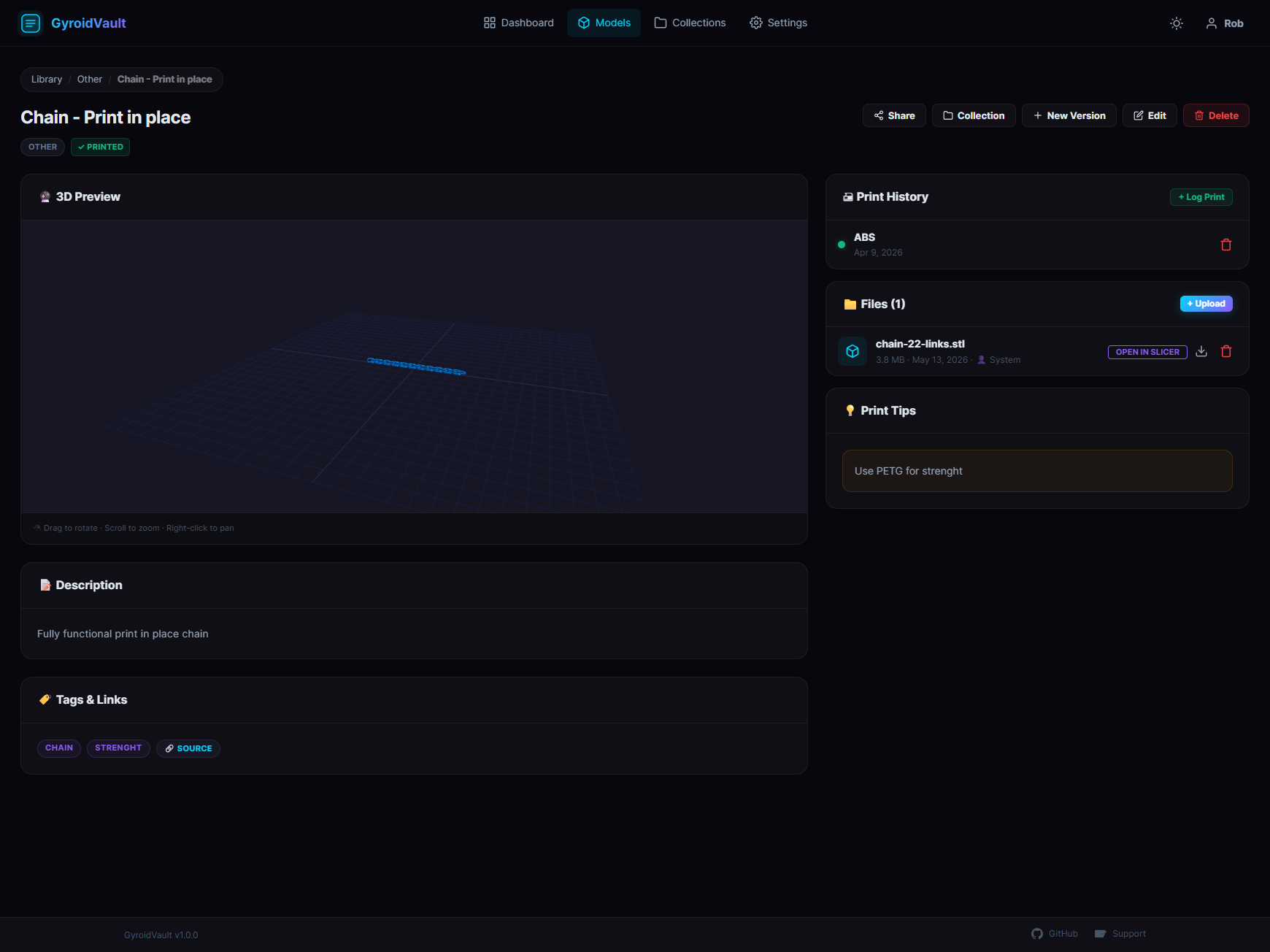

Model Detail View Dashboard Statistics

Features

  • Dark/Light Mode: Toggle between dark and light themes depending on your preference.
  • Batch Actions: Select multiple models to move, delete, or add to collections at once.
  • Folder Watching: Automatically scan your local directories to import models, or upload them manually.
  • Built-in 3D Viewer: Preview STL and 3MF files directly in your browser.
  • Collections: Group related files together for multi-part projects.
  • Model Versioning: Track design iterations (v1, v2, final) under a single model entry.
  • Print Log: Keep a history of your prints, filament types used, and success rates.
  • Public Share Links: Generate secure, expiring links to share specific models with others.
  • Slicer Integration: Open files directly in Bambu Studio, PrusaSlicer, OrcaSlicer, or Elegoo Slicer.
  • Multi-User & Roles: Set up user accounts and admin controls to restrict access.

Quick Start (Docker Compose)

The easiest way to get GyroidVault running is using Docker Compose.

  1. Create a file named docker-compose.yml:

    services:
  gyroidvault:
    image: ghcr.io/teecodedev/gyroidvault:latest
    container_name: gyroidvault
    ports:
      - "3457:3000"
    volumes:
      - ./data:/app/data
      - /path/to/your/3dprints:/library
    environment:
      - NODE_ENV=production
      - PORT=3000
      - LIBRARY_PATH=/library
    restart: unless-stopped

  2. Configure your library: Replace /path/to/your/3dprints with the path on your host machine where your models are stored.

  3. Start the container:

    docker-compose up -d

  4. Open in browser: Go to http://localhost:3457 in your browser.

Initial Setup

1. Registering the Admin

The very first person to register on a new GyroidVault instance automatically becomes the Administrator.

  • You do not need an invite code for the first registration.
  • If you are prompted for an invite code on a fresh install, make sure your ./data directory is empty.

2. Configuring SMTP (Email)

To enable password resets and user invitations, you need to configure SMTP:

  1. Log in as the Administrator.
  2. Go to Settings > SMTP & Mail.
  3. Enter your SMTP server details (Host, Port, User, Password).
  4. Save and test the configuration.

Manual Installation

  1. Install Node.js (v18+).
  2. Clone this repo and run npm install.
  3. Copy .env.example to .env and configure your settings.
  4. Run npm start.

Security & Privacy

  • Local SQLite Database: Your data stays on your own hardware. No external cloud database or telemetry is forced.
  • Admin Control: The first registered user automatically becomes the Admin. Invited users need token codes.
  • File Management: Uploaded files are kept locally in the database/uploads structure.

Troubleshooting & Support

Common Issues

  • Viewer not loading: Make sure your browser supports WebGL and that you are not using an ad-blocker that blocks Three.js components.
  • File scanning issues: Verify that your LIBRARY_PATH or the volume mapping in Docker is correct and that the app has read permissions for that directory.
  • Slicer links not opening: Make sure the slicer (Bambu Studio, etc.) is installed and has registered its URL scheme on your OS.
