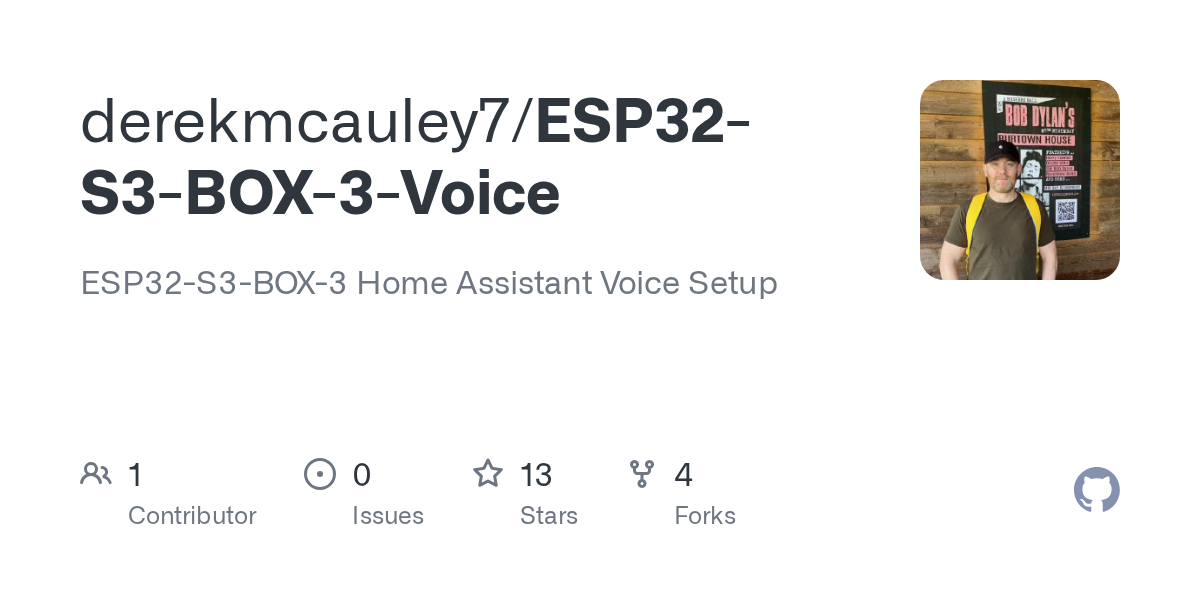

Hardware voice satellites represent one of the most active segments in local home automation. For users building out an offline or self-hosted smart home, Espressif's ESP32-S3-BOX series emerged as a primary hardware reference platform, particularly following Home Assistant's concerted push toward voice control. The repository ESP32-S3-BOX-3-Voice, created by developer derekmcauley7, is a focused project addressing the configuration and deployment of voice control specifically tailored for the ESP32-S3-BOX-3 within the Home Assistant ecosystem.

With 13 stars on GitHub, this is an understated, niche repository rather than a widespread framework. It sits squarely in the utility category: an implementation aimed at users who own the third-generation ESP32-S3-BOX hardware and need a working, repeatable setup to interface with Home Assistant's voice assistant infrastructure.

Architecture

The technical role of this setup centers on bridging physical audio hardware with a networked automation server. The ESP32-S3-BOX-3 provides dual microphones, an onboard audio codec, an integrated speaker, and an LCD touch display, driven by an ESP32-S3 dual-core microcontroller with vector instructions optimized for neural network operations.

In a voice setup like this, the microcontroller does not execute speech recognition or large language processing directly on the device. Instead, the architecture relies on a distributed client-server model:

  1. Edge audio capture: The ESP32-S3 handles analog-to-digital audio conversion, gain control, and acoustic echo cancellation.
  2. Wake detection: The hardware monitors local audio input for an activation prompt, either locally via lightweight microcontroller wake models or by passing audio streams directly upstream.
  3. Transport to Home Assistant: Audio payloads stream across the local Wi-Fi network to Home Assistant, typically utilizing native API integrations or WebRTC/MQTT-backed voice protocols.
  4. Server-side pipeline: Home Assistant orchestrates speech-to-text (STT via tools like Whisper), intent parsing (Assist), and text-to-speech (TTS via engines like Piper).
  5. Downstream playback: The resulting audio response stream returns to the BOX-3 for playback through its onboard amplifier and speaker.

Configurations targeting this device typically implement these stages through dedicated ESPHome definitions or custom C++ firmware builds. By encapsulating the specific pinouts, audio drivers, and integration parameters needed for the BOX-3, projects of this type eliminate the manual guesswork usually required when mapping raw board schematics to Home Assistant entities.

What you can do with it

The primary utility of this repository is turning an off-the-shelf ESP32-S3-BOX-3 into an interactive smart home terminal. When configured against a functional Home Assistant server, the device acts as an always-listening satellite node.

Functionally, this enables hands-free home control. Users speak voice commands into the device to trigger automations, toggle lights, query sensor states, or control media playback. Because the device contains both input and output paths, it also supports audible feedback, playing synthesized responses directly from the Home Assistant pipeline. Depending on how deeply the display configuration is hooked into the firmware, the setup can also expose visual indicators on the screen, showing connection status, listening states, and transcribed text.

The project exists because standard, unconfigured microcontroller boards do not work with voice servers out of the box. Audio hardware requires tuned gain settings, proper I2S bus timing, and correct GPIO mapping before it can reliably pass voice data to a server. This repository packages those hardware-specific realities into a concrete setup.

Constraints and gotchas

Working with focused, small-scale community projects brings distinct trade-offs that prospective users should evaluate.

First, hardware specificity is absolute. The repository targets the ESP32-S3-BOX-3. It is not directly interchangeable with earlier revisions like the original ESP32-S3-BOX or the ESP32-S3-BOX-Lite without modifying pin assignments, driver configurations, and display parameters. The BOX-3 introduced modular backplanes and slight hardware variations that break configs written for earlier models.

Second, the repository is maintained by an independent creator with a small user footprint. Unlike the official firmware maintained directly by the Home Assistant or ESPHome teams, single-maintainer repositories may lag behind when upstream voice pipeline standards evolve. If Home Assistant refactors its native voice satellite protocol or introduces new audio formats, smaller configuration projects often require manual maintenance to remain compatible.

Third, the broader ecosystem requirements cannot be ignored. The ESP32-S3-BOX-3 cannot function as an isolated voice terminal on its own. It requires a functioning Home Assistant server on the local network equipped with an active voice pipeline. If your server lacks sufficient compute to run local speech-to-text engines, voice latency will suffer regardless of how well the microcontroller firmware is tuned.

Getting started

Because this repository contains specific configuration definitions rather than an auto-installing binary distribution, installation generally involves checking out the code and flashing it to your hardware using standard ESP tools or the ESPHome command line. Readers looking for exact connection steps and flashing parameters should consult the implementation notes available on the project's repository.

Choosing between custom setups and official builds

If you already use Home Assistant's official voice tools, you might wonder whether to track a dedicated repository like this or stick to upstream default firmware images. Official ready-made web installers offer simplicity, but individual configurations like this one are valuable when you want finer control over audio components, pin definitions, or customization options that generic builds lock down. For users looking to study or adapt an explicit configuration for their hardware, the source is on GitHub.
