Upgrade your 2nd-generation Amazon Echo Dot (biscuit, RS03QR) into a local Home Assistant voice satellite (and more).

A pure-Go replacement for Amazon's services that speaks the ESPHome native API, so Home Assistant discovers it the way it discovers any ESPHome device.

Requires a device unlocked with TWRP or similar — see xdaforums for details.

Includes:

100% on-device local wake words. Supports openWakeWord and microWakeWord models, including "stop" detection.

LED ring. Twelve individually addressable segments, multiple animation effects across ambient, motion, alert and room-reactive behavior, and a color picker per segment. The ring can follow the room's volume.

Speaker. A native Home Assistant media_player — play any media Home Assistant can hand it. Music can duck under a wake word, and resumes. Also supports white-noise generation.

Bluetooth proxy. BLE advertisements forwarded to Home Assistant, so the Dot extends your Bluetooth and can be used in integrations like bermuda.

Lux sensor. The board carries an ambient light sensor that Amazon appears to have left unused.

The optional integration

Everything above works with stock Home Assistant. The EchoLocal integration (HACS) adds optional functionality:

  • a dashboard and cards built for these devices
  • per-turn history
  • play back of what the microphones heard
  • a wake word library manager

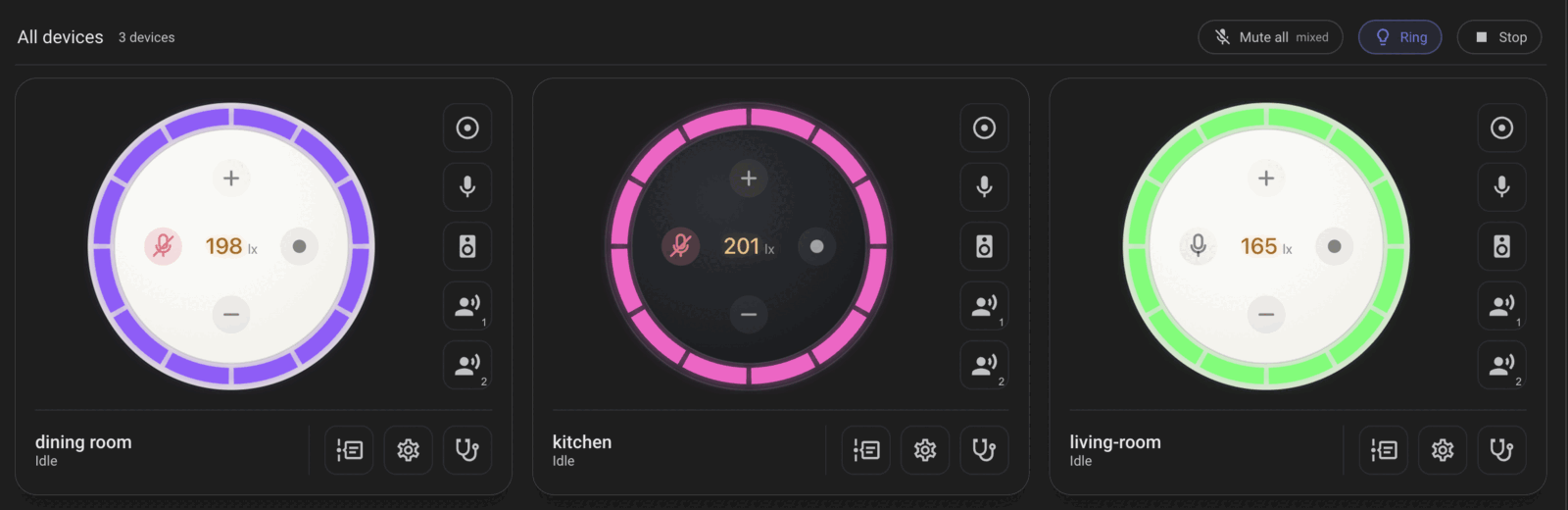

The EchoLocal dashboard: three Dots, rings lit, each showing its room's light level

Installing

You need a 2nd-generation Echo Dot, connected via a USB cable, and a device that has been unlocked with TWRP as its recovery partition. echoctl does the rest. It'll prompt for wifi configuration if it hasn't been setup and provide espHome encryption key

echoctl install --name living-room

echoctl install, from flashing the boot image to the device coming back on wifi

It then turns up in Home Assistant on its own, and the key echoctl printed is what pairs it:

Building it yourself

make build-echod     # cross-compile the daemon for the Dot
make install-echod   # build, install, and restart it on a connected device

How it fits together

  • echod runs on the Dot: the hardware, the wake word engines, the conversation, and an ESPHome native API server.
  • echoctl is the host CLI: installing, re-installing, provisioning, and offline tools for debugging the device.
  • go-esphome-device implements the device half of the ESPHome protocol, including the voice satellite and Bluetooth proxy.
