ha-google-home-bt-proxy

A Home Assistant integration that turns Google Home and Nest speakers into Bluetooth proxies.

Features

• Bluetooth Remote Scanner: Uses Home Assistant's native Bluetooth remote scanner interface (habluetooth.BaseHaRemoteScanner) to inject discovered BLE advertisements directly into Home Assistant.
• Signal Filtering and Smoothing: Supports rolling median and exponential moving average (EMA) filters to reduce RSSI fluctuations. Can be disabled to forward raw calibrated values.
• Distance Estimation: Calculates approximate distance in meters using a log-distance path loss formula. Can be disabled if distance calculations are not needed.
• Distance Cutoff: Drops advertisements beyond a configured max_distance threshold.
• Target Filtering: Provides all, known_only (named or IRK-resolved devices), and whitelist modes to suppress randomized private addresses (RPAs) and filter noise.
• Scan Orchestration: Serializes active Bluetooth scans across speakers in round-robin order to minimize 2.4GHz Wi-Fi and Bluetooth interference.
• Playback Awareness: Detects active Cast V2 media sessions and Bluetooth audio connections to throttle or pause scans during media playback.
• Per-Speaker Settings: Overrides scan intervals, timeouts, playback handling, and calibration offsets per speaker or falls back to global defaults.
• Entities and Controls: Provides status and packet counter sensors, an on/off switch to toggle scanning per speaker, and a button to trigger manual scans.
• Token Handling: Automatically handles Google local authorization token renewal and retries connection failures with backoff.
• Diagnostic Tool: Includes scripts/probe_speaker.py to inspect local speaker endpoints and verify device capabilities.

Screenshots

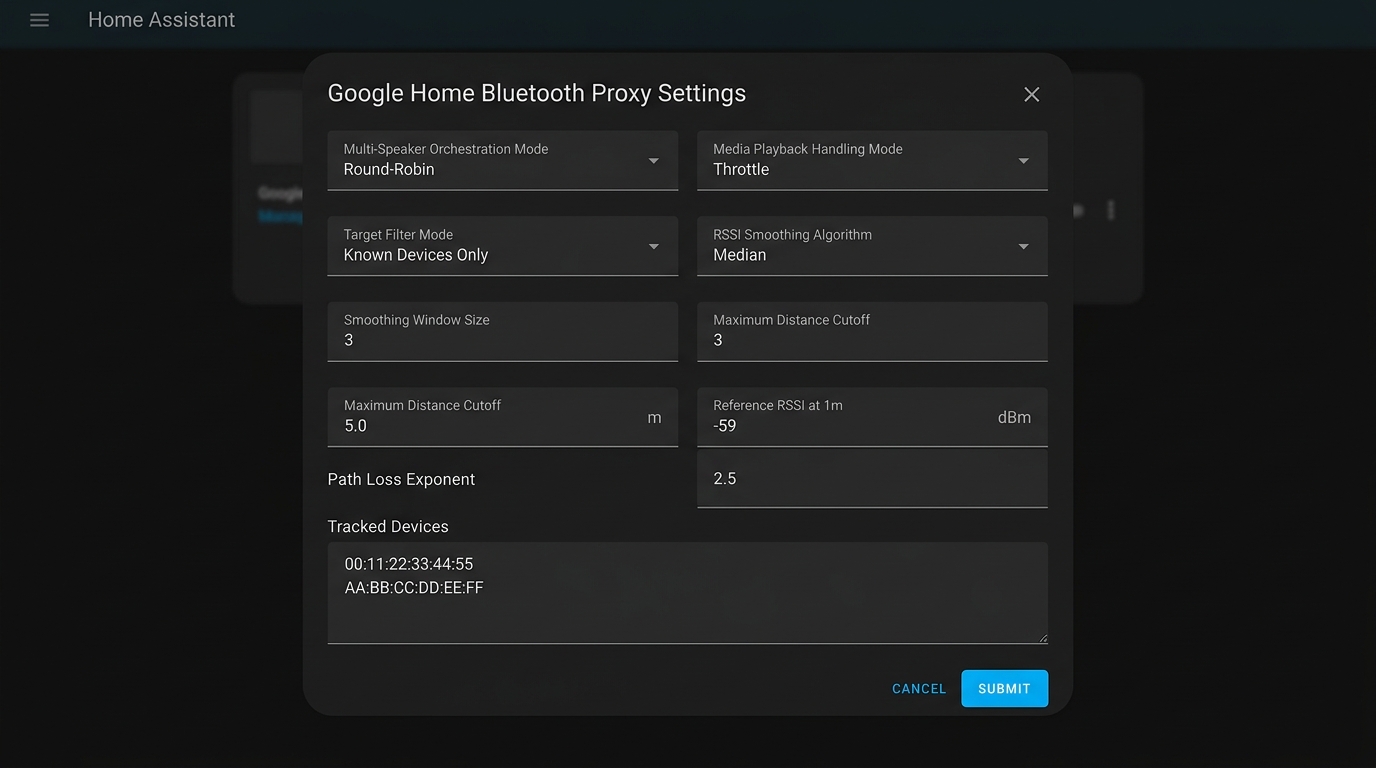

Options Flow showing orchestration, distance gating, and signal smoothing settings.

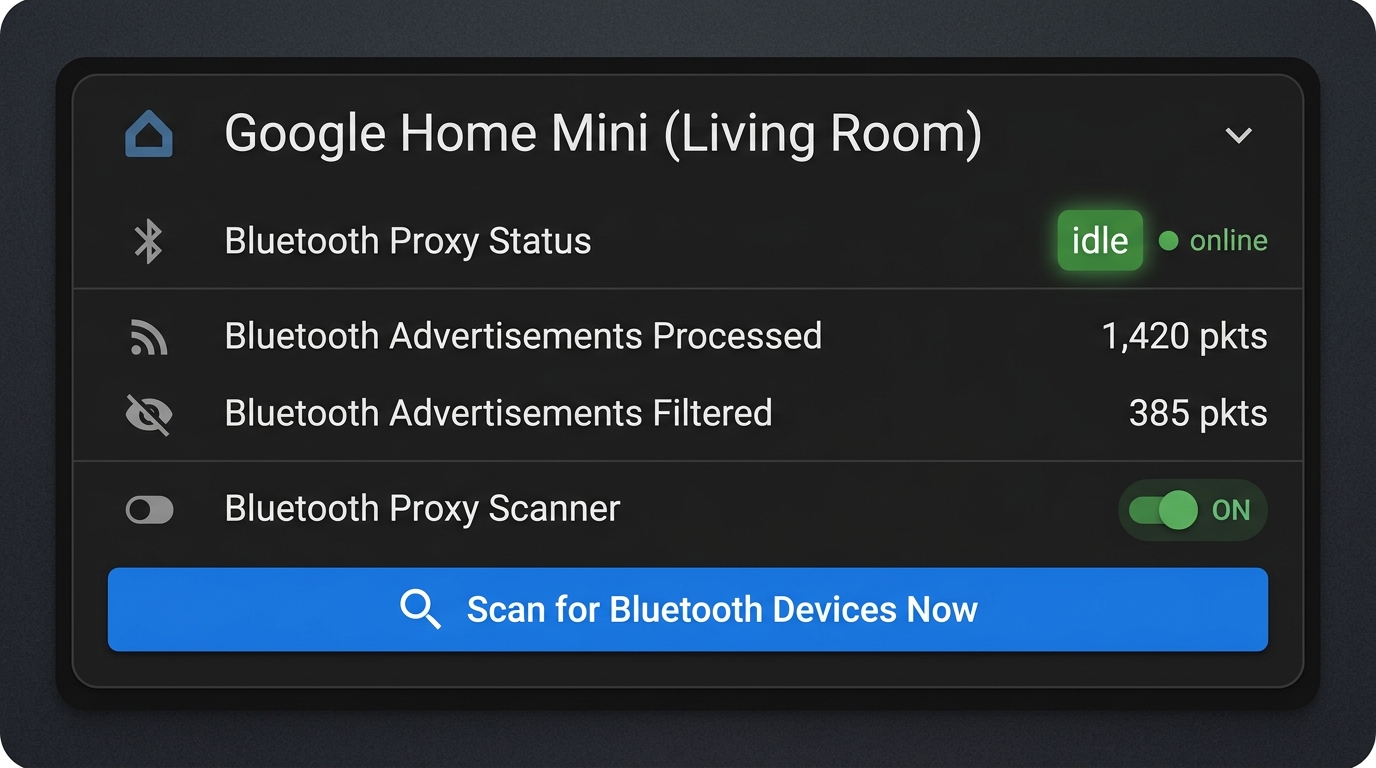

Device card showing operational status, packet counters, proxy toggle switch, and scan trigger button.

Hardware Compatibility

For technical details on ports and protocols, see docs/hardware_matrix.md.

Installation

HACS (Recommended)

1. In Home Assistant, open HACS > Integrations.
2. Open the menu in the top-right corner and select Custom repositories.
3. Enter https://github.com/spelech/ha-google-home-bt-proxy as the Repository and select Integration as the Category.
4. Click Download, then restart Home Assistant.

Manual Installation

Copy custom_components/google_home_bt_proxy into your Home Assistant config/custom_components/ directory:

cp -r custom_components/google_home_bt_proxy /path/to/homeassistant/config/custom_components/

Restart Home Assistant.

Configuration

1. In Home Assistant, navigate to Settings > Devices & Services > Add Integration.
2. Search for Google Home Bluetooth Proxy.
3. Authenticate using your preferred method:
   • Existing Google Home Users (Automatic 1-Click): If you already run the popular ha-google-home integration, your credentials and master token are automatically detected and imported with 1 click.
   • Browser Token / Cookie Copy (~30 Seconds): Enter your Google account email and paste the one-time oauth_token cookie value (oauth2_4/... or master token aas_et/...).
4. The integration discovers supported speakers on your local network and sets up Bluetooth scanner proxies for them.

How to Retrieve Your Browser Token

Google has blocked automated password authentication (gpsoauth) on almost all modern accounts. To safely retrieve your token directly from Google:

1. In a desktop browser (Chrome, Edge, Brave, Firefox), open: https://accounts.google.com/EmbeddedSetup
2. Sign into your Google account and click "I agree" on the setup screen.
3. Open Developer Tools (F12 or Ctrl+Shift+I / Cmd+Opt+I).
4. Go to Application (Chrome/Edge/Brave) or Storage (Firefox) > Cookies > https://accounts.google.com.
5. Copy the value of the cookie named oauth_token (starts with oauth2_4/...), then close the browser tab.
6. In Home Assistant, paste that token directly into the OAuth Token or Master Token field (raw strings like oauth_token:"oauth2_4/..." are cleaned automatically).

For a detailed step-by-step walkthrough with visual screenshots, see the Authentication Guide.

Configuration Options

Click Configure on the integration card to adjust settings globally or for specific speakers:

• Configure Settings For: Choose Global Settings or a specific speaker to customize.
• Bermuda BLE Optimization Mode (bermuda_mode): Auto-optimizes RF packets for Bermuda BLE Trilateration (default: true if Bermuda is installed, else false).
• Filter Peer Speakers (filter_peer_proxies): Automatically suppresses BLE packets emitted by peer Google Home/Nest speakers (default: true).
• Multi-Speaker Orchestration (orchestration_mode): round_robin to serialize scans across speakers, or independent (default: round_robin).
• Idle Scan Duration (scan_timeout): Duration in seconds for each active scan (default: 4s).
• Idle Scan Interval (scan_interval): Pause between scans in seconds (default: 4s, ensures total cycle $\le 10\text{s}$).
• Playback Scan Duration / Interval (playing_scan_timeout, playing_scan_interval): Scan timing while media is playing (defaults: 2s and 30s).
• Playback Handling Mode (playback_mode): throttle (slower scans during playback), skip_ceiling (pause until max duration), or ignore (default: throttle).
• Minimum RSSI Threshold (rssi_threshold): Minimum signal level in dBm to ingest (default: -90 dBm).
• RSSI Calibration Offset (rssi_offset): Hardware calibration adjustment in dBm applied to incoming signals (default: 0 dBm; bypassed in Bermuda Mode).
• Target Filter Mode (filter_mode): all, known_only (named or IRK-resolved devices), or whitelist (default: all).
• Tracked Devices (tracked_devices): Comma-separated list of MAC addresses, prefixes (e.g. AA:BB:CC), or name substrings.
• Enable RSSI Smoothing (enable_rssi_smoothing): Enables rolling smoothing filter (default: true; bypassed in Bermuda Mode).
• RSSI Smoothing Algorithm (rssi_filter_mode): none, median, or ema (default: median).
• Smoothing Window Size (rssi_filter_window): Number of samples kept for smoothing (default: 3).
• Enable Distance Estimation (enable_distance_estimation): Enables distance calculation and distance gating (default: true).
• Maximum Distance Cutoff (max_distance): Drops packets estimated beyond this distance in meters (0.0 disables cutoff, default: 0.0m).
• Reference RSSI at 1 Meter (ref_power): Expected RSSI at 1 meter in dBm (default: -59 dBm).
• Path Loss Exponent (path_loss_exponent): RF attenuation factor $n$ (indoor default: 2.5).
• Known IRKs (known_irks): Resolves private addresses for iOS and macOS devices (format: name:hex_key, one per line).

Bermuda Integration & Architecture

Bermuda BLE Trilateration is a Home Assistant integration that tracks BLE devices (beacons, smart watches, phones) and performs real-time room presence estimation using Bluetooth proxy data.

ha-google-home-bt-proxy includes native, first-class compatibility with Bermuda (validated against Bermuda v0.8.7+).

⚠️ Important Scan Result Caveats (Local API vs Hardware Sniffers)

Google Home and Nest speakers operate as Bluetooth proxies by querying Google's local on-device REST API (/setup/bluetooth/scan_results). Because this is an active Bluetooth inquiry scan implemented in the speaker firmware rather than a raw hardware BLE sniffer (like an ESP32), several physical and architectural caveats apply:

[!WARNING] No Raw Manufacturer Data / No iBeacon UUID Support

• Firmware Limitation: Google Home's local API returns only parsed device records: mac_address, rssi, name, device_type, and device_class. It does not return raw advertisement payloads, manufacturer-specific data (manufacturer_data), service UUIDs, or calibrated TX power bytes.
• Bermuda Impact: Bermuda detects iBeacons (0x004C0215) exclusively by parsing advert.manufacturer_data. Because this payload is stripped by the Google Home local API, Bermuda cannot identify or track iBeacon UUIDs through Google Home speakers.
• What IS Supported: Devices with static Bluetooth MAC addresses, and modern smartphones/smartwatches with rotating Resolvable Private Addresses (RPAs) tracked via Home Assistant's native Private BLE Device integration (IRK).

[!NOTE] Smartphone Sleep & Lock Behavior (iOS / Android)

• Battery Conservation: When locked with the screen off, iOS and modern Android versions aggressively throttle or completely cease unassociated BLE advertisement transmissions.
• Symptom: Your phone or smartwatch may only report distance or show as "Home" when unlocked, awake, or actively communicating.
• Solution: For continuous 24/7 background tracking while locked, enable the BLE Transmitter sensor in the Home Assistant Companion App on your phone (under Settings > Companion App > Manage Sensors > BLE Transmitter). This commands the phone OS to maintain periodic BLE broadcasts even when asleep.

[!TIP] Active Inquiry Cadence vs Passive Sniffing

• ESP32 proxies listen passively 100% of the time. Google Home speakers perform periodic active inquiry sweeps (default: 4 seconds scanning, followed by 4 seconds pause).
• This 8-second total cycle is specifically optimized to stay under Bermuda's strict 10-second packet freshness cutoff (AREA_MAX_AD_AGE).

📋 Bermuda Setup & Configuration Requirements

To successfully use Google Home speakers for distance estimation and room presence in Bermuda, satisfy the following requirements:

1. Mandatory Area Assignment in Home Assistant (Crucial)

• Why: In Bermuda's core trilateration engine (coordinator.py:1350-1355), any scanner without an assigned Area (area_id is None) is strictly disqualified from distance calculations and area contests. An area-less speaker will trigger a REPAIR_SCANNER_WITHOUT_AREA issue and will never attribute room presence or distance to tracked devices.
• How: ha-google-home-bt-proxy automatically inspects Home Assistant's Device Registry to inherit existing Area assignments from official Google Cast or Google Home device entries, and continuously synchronizes Area assignments between the speaker device and the core Bluetooth scanner entry.
• Verification: Go to Settings > Devices & Services > Google Home Bluetooth Proxy > click each speaker > ensure an Area is assigned.

2. Enabling Per-Scanner Distance Entities (Distance to <Speaker>)

• Why: Bermuda deliberately configures all individual per-scanner distance entities (sensor.<device>_distance_to_<speaker>) as disabled by default (entity_registry_enabled_default = False) to prevent dashboard clutter.
• Symptom: Looking at your tracked device in Home Assistant shows Area, Distance (closest overall), and Floor, but does not show individual Google Home speakers.
• How to Enable:
  1. In Home Assistant, go to Settings > Devices & Services > Bermuda BLE Trilateration.
  2. Click on your tracked device (e.g., your phone or watch).
  3. Click Entities (or enable Show disabled entities).
  4. Find Distance to and click Enable entity.

3. Tracking Modern Phones & Watches with Private BLE Device (IRK)

• Because Google Home scan results do not include iBeacon manufacturer data, devices that use rotating Resolvable Private Addresses (RPAs) must be tracked using Identity Resolving Keys (IRK).
• Add the Private BLE Device integration in Home Assistant, enter your device's IRK (extracted via macOS Keychain or ESPHome BLE tools), and Bermuda will automatically track that device across all Google Home proxies.

4. Calibrate Offsets Inside Bermuda (Not in Proxy Settings)

• In Bermuda BLE Optimization Mode (bermuda_mode: true), the proxy automatically forwards raw instantaneous RSSI and sets a 0 dBm internal offset so that Bermuda can perform its own asymmetric velocity filtering and cross-scanner trilateration.
• To balance signal variations between Google Home Mini (Gen 1) and Nest Mini (Gen 2) hardware, apply antenna offsets inside Bermuda: Settings > Devices & Services > Bermuda > Configure > Configure Scanner Offsets.

Bermuda Optimization Mode Settings & Architecture

When Bermuda Mode is active (bermuda_mode: true), the integration automatically enforces specific RF ingestion rules based on Bermuda's internal architecture:

See docs/bermuda_calibration.md for full step-by-step calibration and troubleshooting walkthroughs.

Diagnostic Probe Script

The repository includes a script to test speaker endpoints and verify compatibility:

uv run scripts/probe_speaker.py --host 192.168.1.110

# Scan probe: runs an inquiry scan with local auth token
uv run scripts/probe_speaker.py --host 192.168.1.110 --token "your-token" --timeout 5 --check-cast

Options

• --host: IP address of the speaker or Cast device.
• --port: HTTPS API port (default: 8443).
• --token: Local authorization token.
• --timeout: Scan duration in seconds (default: 5).
• --check-cast: Probes the Cast V2 TLS socket on port 8009.

The script tests:

• GET /setup/eureka_info: Firmware version and capabilities.
• GET /setup/bluetooth/status: Bluetooth state.
• POST /setup/bluetooth/scan: Triggers an active inquiry scan.
• GET /setup/bluetooth/scan_results: Displays detected devices and RSSI values.
• Port 8009: Checks Cast V2 media controller connectivity.

Development & Testing

This project uses uv, ruff, and pytest:

# Install dependencies
uv sync

# Format and lint checks
uv run ruff format --check .
uv run ruff check .

# Run tests with coverage
uv run pytest --cov=custom_components/google_home_bt_proxy --cov-fail-under=80 -v
