Recover .NET Native AOT metadata in IDA Pro — type hierarchy, virtual methods, and string literals from symbol-stripped binaries.

A two-file IDA Pro plugin that reverse-engineers .NET Native AOT binaries (.NET 7/8/9/10). These ship with stripped symbols, so IDA shows thousands of unnamed sub_* functions. The plugin parses the runtime's ReadyToRun metadata to rebuild the .NET type system, name the code, and present everything in a navigable browser.

This is an IDAPython port of Washi's excellent Ghidra plugin washi1337/ghidra-nativeaot (see his write-up: Recovering NativeAOT Metadata).

Compatibility

IDA Version Qt Python Qt Bindings Plugin Support
8.x — 9.1 Qt5 PyQt5 ❌ Not supported
9.2+ Qt6 PySide6 ✅ Supported (developed & tested on 9.3)

The plugin's UI is PySide6-only, the Qt binding IDA adopted in 9.2. x86-64 little-endian targets only (as upstream). The Hex-Rays decompiler is optional but recommended.

What it does

  1. Locates the ReadyToRun (RTR) metadata directory (by symbol or signature scan).
  2. Rehydrates the compressed metadata into the hydrated segment (.NET 8+), or falls back to a pointer scan (.NET 7/10).
  3. Reconstructs the full MethodTable / EEType type hierarchy — base types, interfaces, vtables.
  4. Identifies System.Object / System.String and names virtual methods.
  5. Annotates frozen objects — string literals, arrays, boxed values.

What it produces in the IDB

  • The previously-empty hydrated segment is populated with the decompressed metadata.
  • Struct types (Local Types) for every type: <Class>_MT, <Class>_vtbl, and the <Class> instance layout, with base-class vtable embedding and interface arrays.
  • Method-table labels <Class>_MT at each MethodTable, typed with its struct.
  • Named virtual methods: <Class>::Method_N (slots 0–2 → ToString/Equals/GetHashCode), tagged __thiscall with this typed — Hex-Rays shows e.g. void __thiscall Foo::Method_4(Foo *this).
  • Frozen string literals: UTF-16 strings, labelled dn_<text>_<addr>, with the exact text as a repeatable comment.
  • Frozen arrays / boxed objects typed with their instance/element types.
  • A text report next to the database (<input>.naot_report.txt) and a compressed metadata cache in the IDB (instant browser reopen).

Typical result on a real .NET 8 sample: ~4900 method tables, ~3000 methods named, ~2500 string literals recovered.

The browser

Tabs: Overview (RTR info, sections, stats) · Type Hierarchy (inheritance tree + per-type methods/interfaces) · Methods · Strings · Frozen Data. Double-click any row to jump in IDA; right-click to copy or rename; type kinds have colour icons.

Live sync — the browser tracks IDA renames (manual, FLIRT, Lumina) and updates itself automatically; ↻ Refresh names forces a re-read. Right-click Rename type (propagate) renames a class and its methods (Old::M → New::M) without clobbering FLIRT/user-given names. Type and method names are shown in full and demangled, mirroring any symbols already applied to the database (e.g. from a PDB).

Screenshots

Sample: a NativeAOT build of FlirtCoverage.dll (.NET 8) with its PDB applied. The Overview tab is shown at the top of this page.

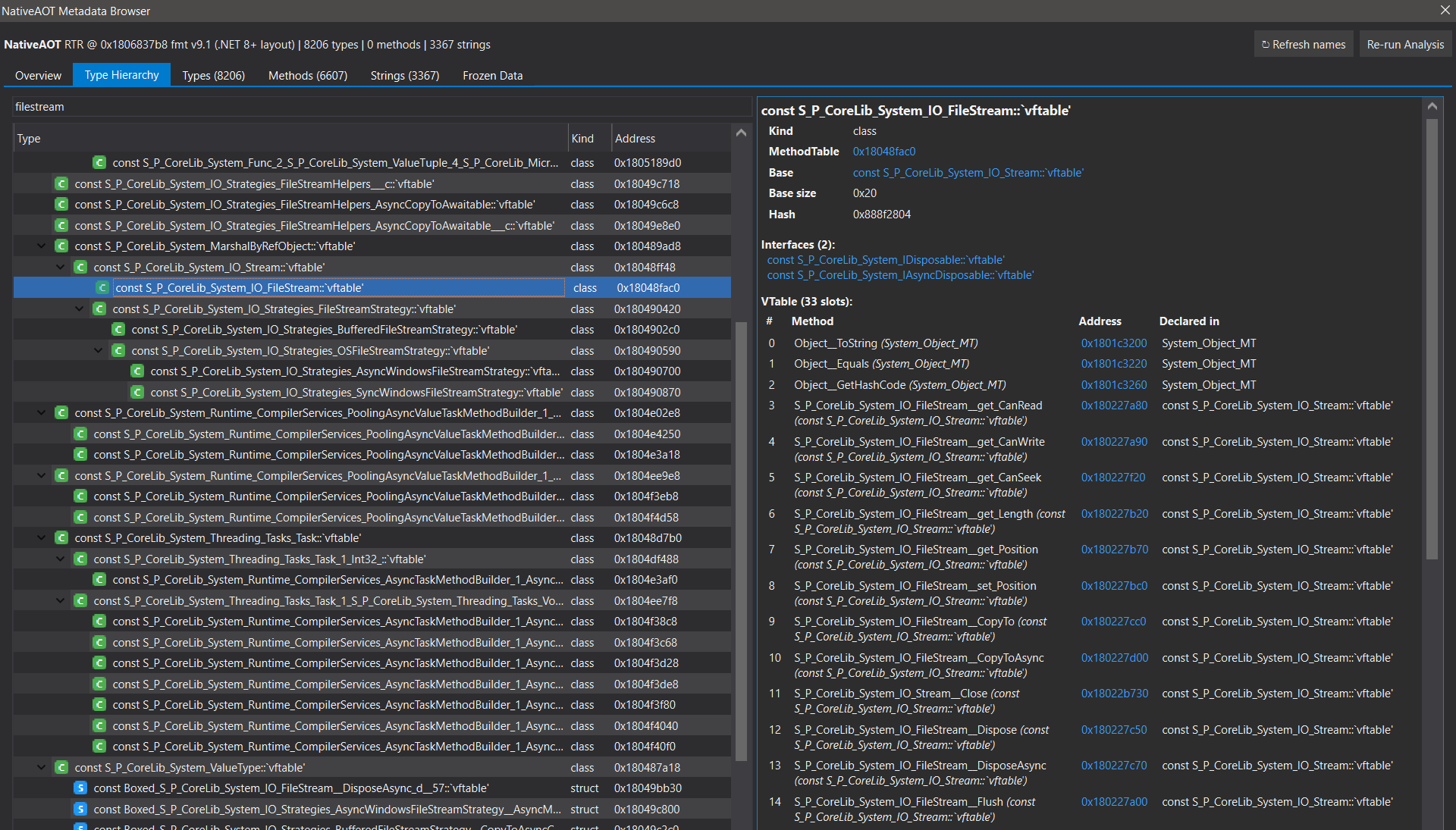

Type Hierarchy - the System.IO.FileStream inheritance chain with the per-type detail pane (base type, interfaces, vtable slots). Names are full and demangled, straight from the applied PDB.

Type Hierarchy tab

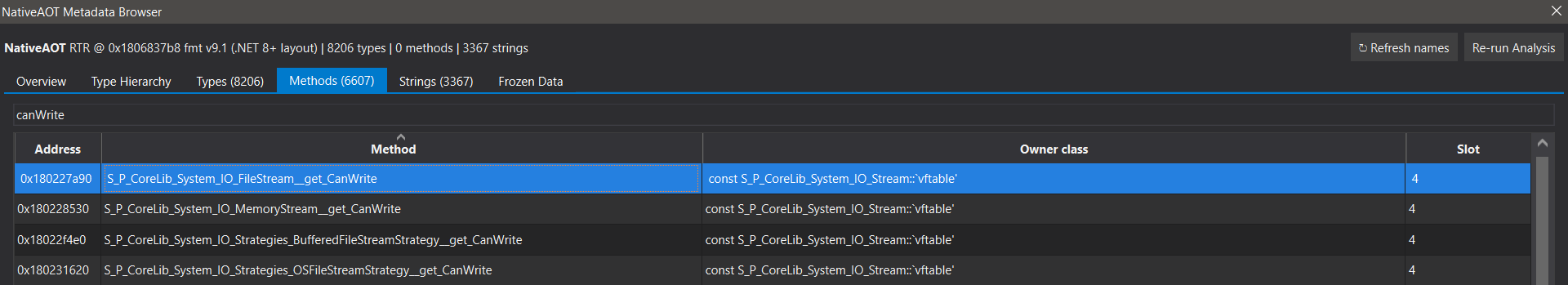

Methods - filtering on canWrite lands on FileStream::get_CanWrite, slot 4 of System.IO.Stream.

Methods tab

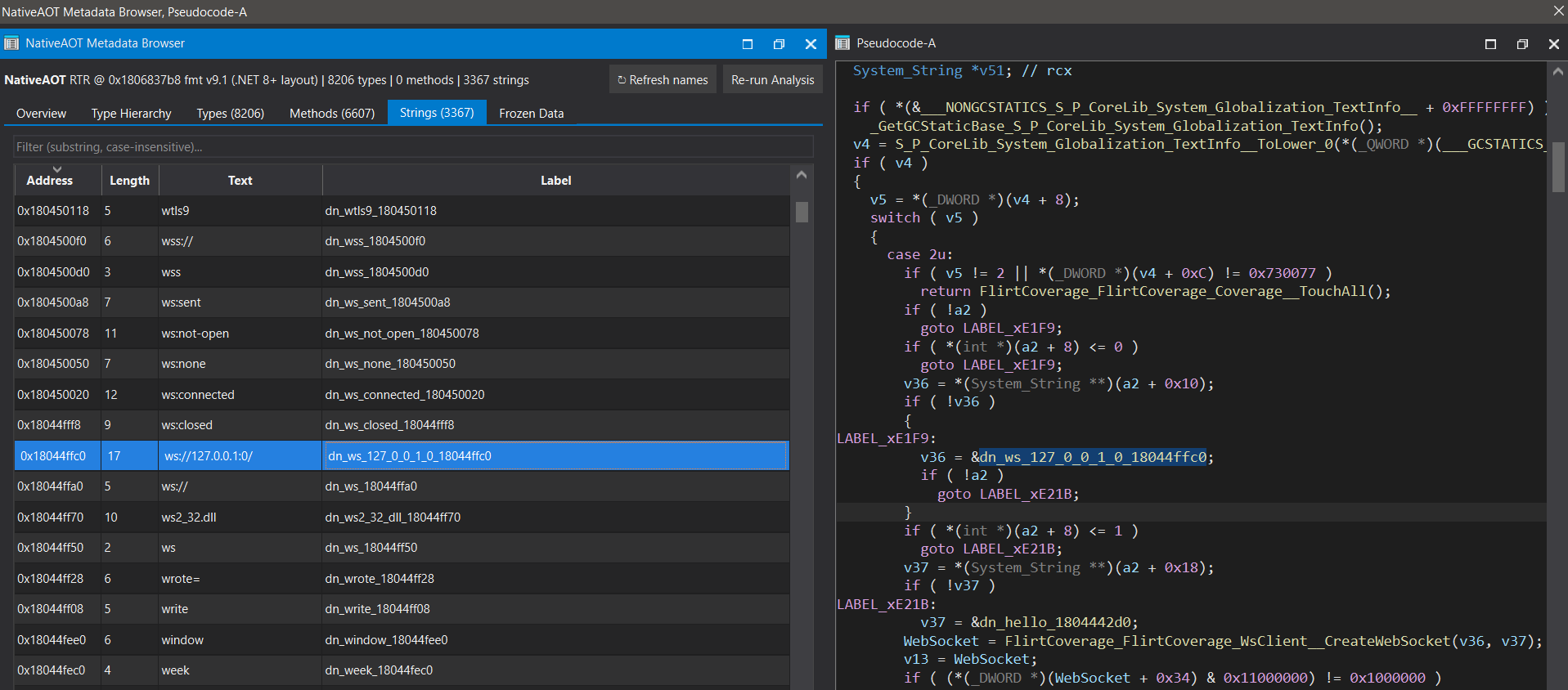

Strings - a recovered frozen literal (ws://127.0.0.1:0/) and how it reads inline in the Hex-Rays pseudocode as a dn_… label.

Strings tab

Installation

Copy both files into your IDA plugins directory (they must sit together — the plugin loads the engine from the same folder):

Per-user (recommended — survives IDA reinstalls):

%APPDATA%\Hex-Rays\IDA Pro\plugins\ida-nativeaot_browser.py
%APPDATA%\Hex-Rays\IDA Pro\plugins\ida-nativeaot.py

System-wide:

<IDA_DIR>\plugins\ida-nativeaot_browser.py
<IDA_DIR>\plugins\ida-nativeaot.py

Restart IDA, then open via Edit → Plugins → NativeAOT Metadata Browser or Ctrl-Shift-N. The first run analyzes and caches the metadata into the IDB; subsequent opens are instant.

ida-nativeaot.py is the analysis engine and can also be run standalone, without the GUI, via File → Script file… or headless: idat64 -A -S"ida-nativeaot.py" target.i64.

IDA Plugin Manager (HCLI)

The plugin ships an ida-plugin.json. This is a two-file plugin - ida-nativeaot_browser.py is the entryPoint and ida-nativeaot.py is a helper module it imports - and the Plugin Manager installs both files together (it extracts the whole plugin directory, not just the entry point). Once published to plugins.hex-rays.com, install with:

hcli plugin install ida-nativeaot
