rickyfont94/climate-cluster-card: A dual-ring AC control card for Home Assistant

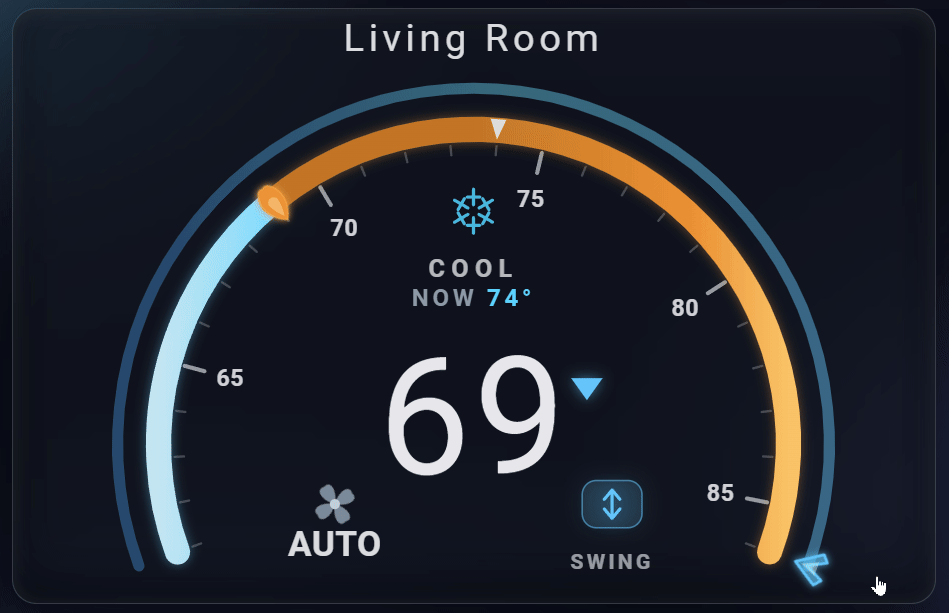

The dual-ring AC control card: drag the inner ring for temperature and the outer ring for fan speed at once, in a wide-arc automotive instrument-cluster face, with a glass mode popup, swing / LED / sound toggles, a numbered gauge scale, and a full visual editor. Built for and tested with Midea (midea_ac_lan), and works with any climate.* entity. Vanilla single-file web component, no dependencies, no build step.

Demo

Demo

Features

What's new in v1.4.0

• Rename the mode buttons - a new mode_names option, and a "Mode labels" section in the visual editor, lets you relabel the OFF / COOL / DRY / and other mode buttons (for example mode_names: { fan_only: Fan }). Any mode you leave unset keeps its default label.
• Rename extra toggles in the editor - each extra_toggles chip now has its own name field in the visual editor, so you can give it a short label without editing YAML.

No breaking changes, safe to update via HACS. Hard-refresh your browser (Ctrl+F5 / Cmd+Shift+R) after updating so the new build loads.

What's new in v1.3.1

• Select chips in extra_toggles fixed - a select you added (for example a Tuya "smart wind" or mode select) that has options but no option chosen yet no longer renders greyed out and unresponsive. It stays a live cycle chip, a tap picks the first option, and it shows its name until you choose one.

No breaking changes, safe to update via HACS. Hard-refresh your browser (Ctrl+F5 / Cmd+Shift+R) after updating so the new build loads.

What's new in v1.3.0

• Custom toggle chips - a new extra_toggles option adds your own controls to the mode popup. Point it at any switch, input_boolean, select, or input_select entity and each renders as a chip: two-state entities toggle on and off, selects cycle through their options. Handy for device functions the card does not auto-detect, like anti-mildew, UV, or a gentle-wind mode.
• Swing position picker - the swing chip now shows the active swing position, and a long-press opens a picker of the entity's real swing options, so vane-position units can jump straight to a position instead of only cycling. The chip label and accent update the moment you tap.
• Swing fix for vane-position units - swing now works on climate entities whose swing options are vane positions (for example MelCloud / Mitsubishi ["Auto", "1".."5", "Swing"]) or use a capitalized Off. The card previously sent a hardcoded lowercase off that those units reject, so the chip stopped responding; it now resolves a real off member from the entity's own swing_modes, or cycles to the next position when there is no off member. Midea switch-backed swing is unchanged.

No breaking changes, safe to update via HACS. Hard-refresh your browser (Ctrl+F5 / Cmd+Shift+R) after updating so the new build loads.

What's new in v1.2.1

• Reliable center tap on touch - on iPhone and iPad the dial center now opens the mode popup every time, instead of leaving a stray focus outline with no popup.
• Scroll past the dial - a vertical swipe anywhere on the card scrolls the dashboard; only the two arc rings still capture the drag to set temperature and fan.
• No focus square - tapping the center no longer flashes a white outline around the temperature.

Touch-only fixes, no config changes, safe to update via HACS.

What's new in v1.2.0

• Light-theme legibility - the gesture hints and numbered tick scale stay readable on light themes, with a card-colored knockout halo so the labels never wash out over the arc.
• Frosted glass appearance - a new appearance option (glass-dark / glass-light) turns the card into a translucent panel that frosts your dashboard wallpaper behind it.
• Glass tint and opacity - glass_color tints the panel and glass_opacity sets how solid it looks (0 clear to 1 solid).
• Editor "Reset styling" button - one click clears every styling override (appearance, glass, accent, font, mode colors) back to theme defaults.
• Dial polish - lighter setpoint numerals, a refined current-temp marker, and an accent-tinted needle for a cleaner face.

No breaking changes, safe to update via HACS.

• Wide-arc instrument dial - a car-cluster gauge with a numbered tick scale, a glowing setpoint needle, and a current-temp marker.
• Two-ring control - drag the inner ring to set the target temperature and the outer ring to set the fan speed.
• Glass mode popup - tap the center to open a frosted mode picker (cool / heat / heat_cool / dry / fan_only / auto / off) with per-mode glyphs; the center caret follows hvac_action (down = cooling, up = heating).
• Discoverable gestures + custom actions - faint MODE / FAN / AUTO hints and press feedback show the dial is interactive; the center supports the standard tap_action / hold_action / double_tap_action (hold opens more-info by default).
• On-card feature toggles - swing, LED display, and beep/sound toggles, auto-wired to Midea sibling entities when present.
• Swing position picker - the swing chip shows the active swing position, and a long-press opens a picker of the entity's real swing options, so vane-position units (MelCloud / Mitsubishi and the like) can jump straight to a position instead of only cycling.
• Custom toggle chips - extra_toggles puts your own switch, input_boolean, select, or input_select controls in the mode popup for features the card does not auto-detect; switches toggle and selects cycle their options.
• Fan animation - a clover fan that can spin proportional to the fan value, at a constant rate, or off.
• Fahrenheit & Celsius - unit, range, and step auto-detected from Home Assistant (or set them explicitly).
• Fully GUI-configurable - every option is exposed in a visual editor; no YAML required.
• Glass theme - translucent card that blends with dashboard wallpapers.

Screenshots

Screenshots

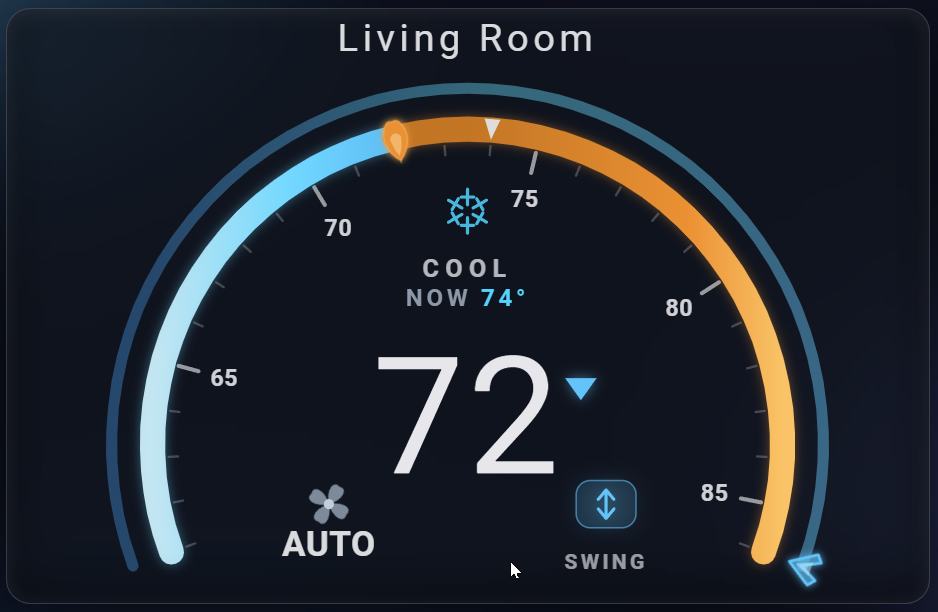

Two-ring dial - inner=temp, outer=fan

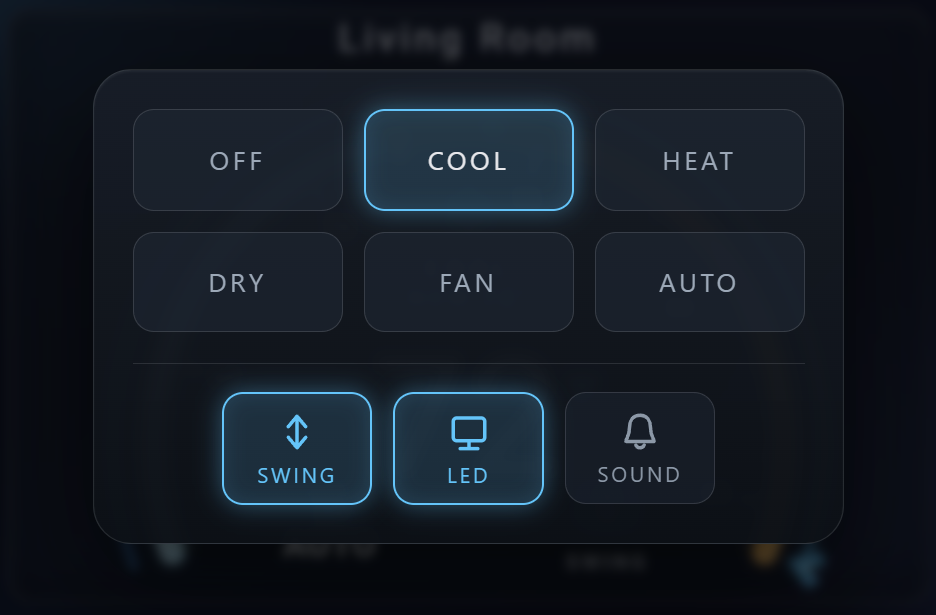

Mode popup - modes + Swing/LED/Sound

Theming and frosted glass

The card renders inside a standard Home Assistant ha-card, so it follows your active theme automatically in both light and dark, picking up the theme's card background, text, and font variables. The dial now reads on light themes too: the gesture hint labels and the numbered tick scale stay legible against a light background. Drop it on any dashboard and it blends in with no configuration.

When you want to deviate from the theme, three options override the defaults:

• accent - the primary UI accent color.
• mode_colors - per-mode color overrides (e.g. cool: "#4fc3f7").
• font (and optional font_url) - the font family for the numerals.

type: custom:climate-cluster-card
entity: climate.living_room
accent: "#ffb74d"
mode_colors:
  cool: "#4fc3f7"
  heat: "#ff7043"

Light and dark theme

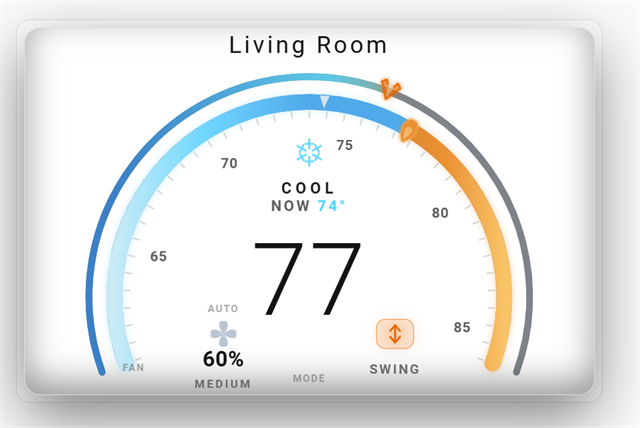

Light theme

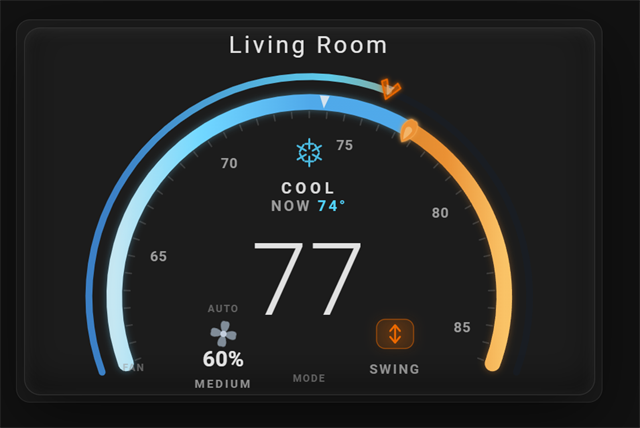

Dark theme

Frosted glass

By default appearance: theme keeps the themed card. Set appearance to glass-dark or glass-light to force a translucent frosted-glass panel that frosts the dashboard wallpaper behind it and holds its look on any theme: glass-dark is a dark indigo finish, glass-light a bright one.

Two more options tune the panel:

• glass_color - tints the frosted-glass panel (frosted-glass appearances only).
• glass_opacity - how solid the panel is, 0 clear to 1 solid (frosted-glass appearances only).

type: custom:climate-cluster-card
entity: climate.living_room
appearance: glass-dark
glass_color: "#2a6f6a"
glass_opacity: 0.6

Frosted glass variations

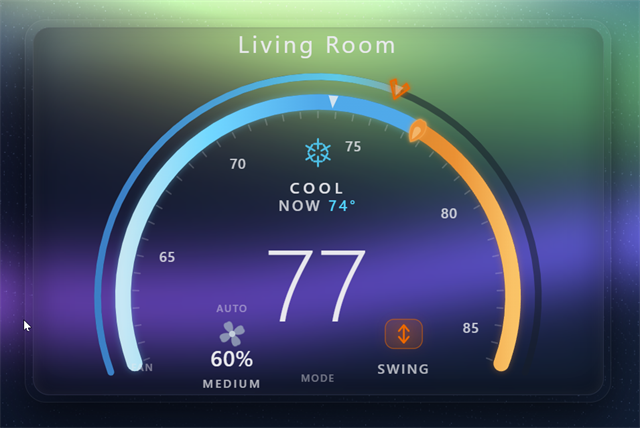

Aurora glass

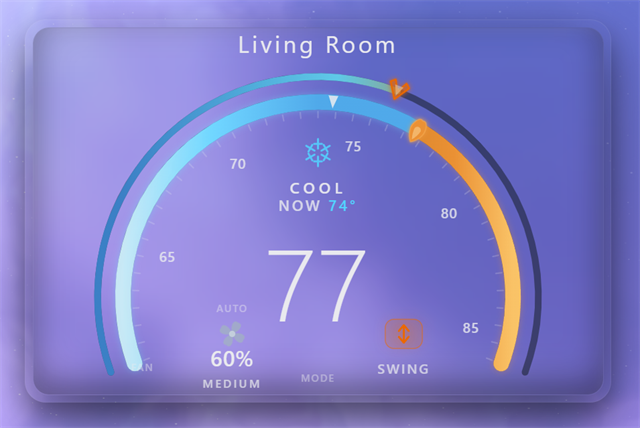

Purple glass

Requirements

• Home Assistant with any climate.* entity.
• Requires Home Assistant 2024.1.0 or newer (matches hacs.json).
• Built for and tested with Midea units via midea_ac_lan. It works with any climate entity, but auto-discovery of the fan / swing / LED / sound siblings is tuned for Midea.
• The fan ring needs one of:
  • a number.*_fan_speed (percent) entity, a smooth draggable 1-100 % ring, or
  • named fan_modes on the climate entity, driven as discrete stops.
  • If neither exists, the fan ring is hidden automatically.

Installation

One-click: the My Home Assistant badge above opens this repository directly in HACS on your own instance. Otherwise follow the manual HACS steps below.

HACS (recommended)

1. In Home Assistant, open HACS.
2. Click the ⋮ menu (top right) → Custom repositories.
3. Add https://github.com/rickyfont94/climate-cluster-card, set Category to Dashboard, and click Add.
4. Find Climate Cluster Card in HACS and click Download.
5. Hard-refresh your browser.

HACS registers the resource as type: module automatically, no manual resource entry or ?v= cache-buster needed.

After updating in HACS, hard-refresh the browser (Ctrl+F5 / Cmd+Shift+R) or clear its cache so the new version loads. A cached old build is the usual reason an update looks like it did nothing.

Manual

1. Download climate-cluster-card.js from the latest release.
2. Copy it to config/www/climate-cluster-card.js.
3. Add a resource under Settings → Dashboards → ⋮ → Resources: URL /local/climate-cluster-card.js, type JavaScript Module.
4. Hard-refresh your browser.

Usage

A full visual editor is built in, add the card from the dashboard UI and click Edit to configure everything below without YAML.

Minimal

type: custom:climate-cluster-card
entity: climate.living_room

Midea (with title + height cap)

type: custom:climate-cluster-card
entity: climate.living_room
name: Living Room
max_height: 34vh

Generic climate with an explicit fan entity

type: custom:climate-cluster-card
entity: climate.bedroom
fan_entity: number.bedroom_fan_speed

Customized (accent, unit, mode subset, animation)

type: custom:climate-cluster-card
entity: climate.office
accent: "#4fc3f7"
temperature_unit: F
modes: [cool, dry, fan_only, "off"]
fan_animation: true
fan_animation_speed: dynamic

Fan control (Midea and generic)

The outer ring sets fan speed. How that speed is sourced depends on the entity.

Midea (midea_ac_lan) - auto-wired

With a Midea unit the card discovers the number.*_fan_speed sibling on its own, so the outer ring is a smooth 1-100 % control with no extra config.

type: custom:climate-cluster-card
entity: climate.living_room

Generic climate - explicit fan entity

For a non-Midea entity, point fan_entity at a percent number.* helper, or rely on the entity's named fan_modes, which the ring drives as discrete stops.

type: custom:climate-cluster-card
entity: climate.bedroom
fan_entity: number.bedroom_fan_speed

show_fan controls the ring's visibility. Left unset it auto-detects (shown when a percent entity or fan_modes exist, hidden otherwise); set show_fan: true or false to force it.

Options

All options are optional except entity. Defaults reproduce sensible behavior, and the visual editor exposes every option.

Appearance

Modes

Fan

Features

Layout

Actions

The center disc supports the standard Home Assistant action config. Each takes an action object (e.g. action: more-info, action: navigate, action: call-service, action: toggle, action: url, action: none).

type: custom:climate-cluster-card
entity: climate.living_room
hold_action:
  action: more-info
double_tap_action:
  action: toggle

Dragging the rings and tapping the clover are unaffected by these actions; the tap/hold/double-tap detector lives on the center disc and respects the drag threshold, so a swipe is never read as a tap.

All three center gestures are configurable together. Leave tap_action unset to keep the default mode popup:

type: custom:climate-cluster-card
entity: climate.living_room
tap_action:
  action: more-info
hold_action:
  action: navigate
  navigation_path: /lovelace/climate
double_tap_action:
  action: toggle

Resolution order (everywhere): explicit config → auto-discovered Midea sibling → generic climate attribute → hide.

Sections view

In the grid Sections layout the card fills its grid cell width and scales the dial to fit, so it sits flush next to other cards instead of overflowing the column. Use max_height to cap how tall it grows in a tall cell:

type: custom:climate-cluster-card
entity: climate.living_room
max_height: 34vh

Troubleshooting

• Blank card. The resource must be registered as type: module (HACS does this automatically). A stale manual resource of the wrong type is the usual cause, fix it and hard-refresh.
• Fan ring missing. The entity has neither a number.*_fan_speed nor named fan_modes. Set fan_entity explicitly or add a percent number helper.
• A toggle (swing/LED/sound) doesn't appear. Nothing resolved, set the matching *_entity, or set show_swing / show_led / show_sound to true.
• An update did not take effect. The browser is serving a cached build. Hard-refresh (Ctrl+F5 / Cmd+Shift+R), or clear the cache, after updating in HACS.

FAQ

How does the fan ring map to speeds?

When the fan is a percent entity (number.*_fan_speed), the outer ring is a continuous 1-100 % control that reads back into named bands:

Dragging a percent nudges the climate fan_mode off auto so the chosen speed actually applies (a unit left on auto overrides a manual percent). Tapping the lower-left clover returns the fan to auto; tapping the center opens the mode popup.

If the climate entity exposes named fan_modes instead of a percent entity, the ring drives those discrete stops rather than a 1-100 % sweep.

What gestures does the dial support?

• Tap the center - opens the mode popup (or runs your tap_action).
• Press and hold the center - opens the more-info dialog by default (or runs your hold_action).
• Double tap the center - runs your double_tap_action (off by default).
• Drag the inner ring - sets the target temperature.
• Drag the outer ring - sets the fan speed.
• Tap the lower-left clover - returns the fan to auto.

Faint MODE / FAN / AUTO labels hint at these on a wall tablet where you cannot hover; turn them off with show_hints: false.

Known limitations

• Tuned for midea_ac_lan. The swing / LED / sound toggles and the fan / swing / LED / sound auto-discovery target Midea units. For a generic climate.* entity, set swing_entity / led_entity / sound_entity / fan_entity explicitly.
• Fan ring needs a source. The fan ring is hidden unless a number.*_fan_speed entity or named fan_modes exist.
• Limited feature surface. Only the Swing / LED / Sound toggles are surfaced on the card. Expose any other features (boost, eco, sleep, and so on) with your own cards.
• Rajdhani font not bundled. The card prefers the Rajdhani font for its numerals but does not bundle or fetch it. If you have Rajdhani installed locally it is used; otherwise the card falls back to your Home Assistant theme font, then to the system UI font. Nothing 404s and no network request is made by default. To force a specific font, set font (and optionally font_url); see the configuration options.

Notes

The card prefers the Rajdhani font for its numerals when it is installed locally, but does not bundle or download it. Without Rajdhani the card uses your Home Assistant theme font (--ha-card-header-font-family), then a system UI font, so the default never depends on a missing font. Set font to prepend your own family to that stack, and font_url to point at a stylesheet (for example a Google Fonts link) that loads it.

Midea is a trademark of its respective owner. This project is independent and unaffiliated.

Translations

English and Spanish ship built in and auto-select from your Home Assistant language; everything else falls back to English.

The card follows your Home Assistant language. HVAC mode names and fan mode names are localized through Home Assistant itself, so they always match the rest of your dashboard. The card's own labels (NOW, SWING, LED, SOUND, AUTO), tooltips, screen-reader text and editor labels ship with English and Spanish, and numbers (temperatures, the tick scale) are formatted with your locale's decimal separator and grouping.

To add a language, edit the LOCALE map near the top of climate-cluster-card.js:

1. Add a new two-letter key (for example de) alongside en and es.
2. Mirror the keys under en, including the nested editorLabels and editorHelpers maps.
3. Any key you leave out falls back to English, so a partial translation is fine.

The active language is read from hass.language (then hass.locale.language); a region subtag is stripped, so es-419 resolves to es. Do not translate mode or fan mode names here; those come from Home Assistant. Keep values free of em dashes. A pull request with a new language is welcome.
