Open-source community firmware, tools and documentation for the ELEGOO Centauri Carbon 2 (CC2), maintained by Neme77. The project extends the stock platform while preserving the original ELEGOO ecosystem wherever possible.
This project is not affiliated with, endorsed by, or supported by ELEGOO.
Community Firmware V4.0

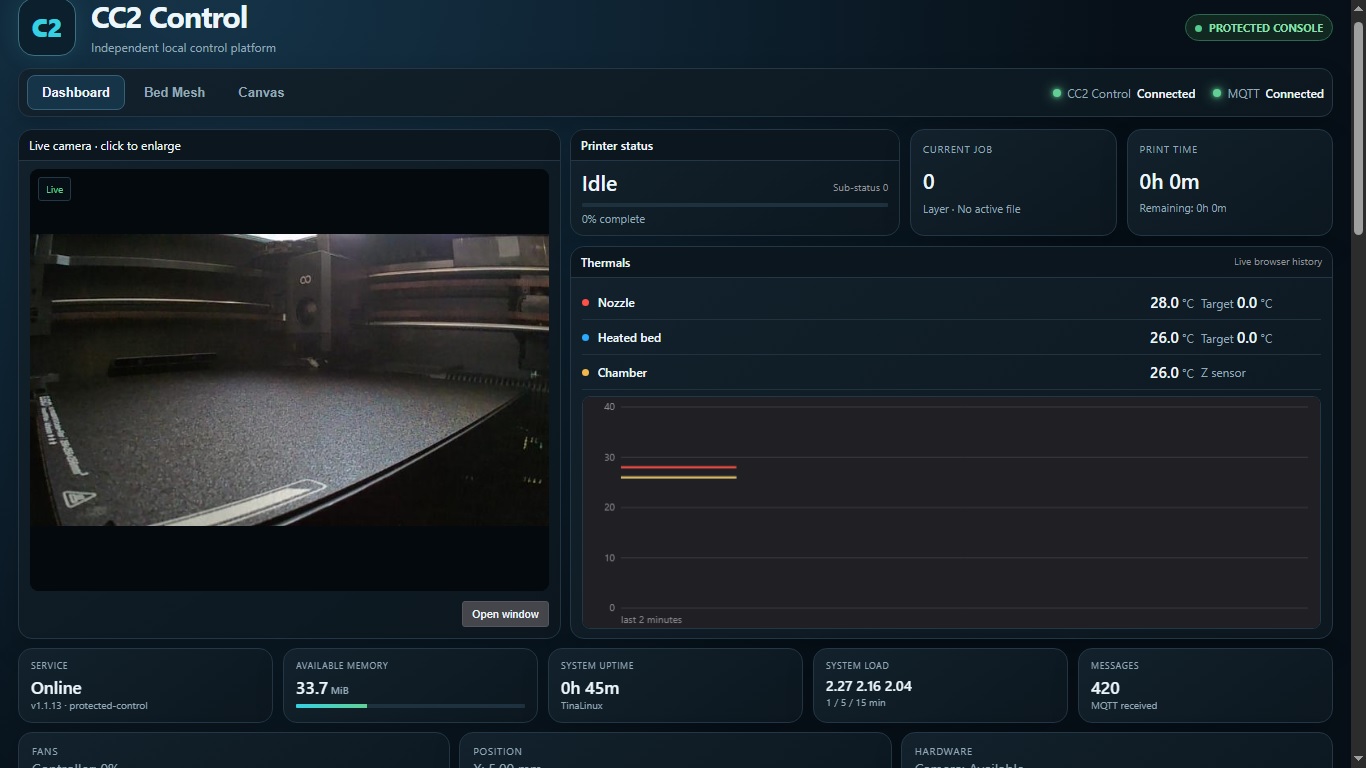

Firmware V4.0 integrates CC2 Control 1.1.22, a lightweight on-printer web dashboard available at http://PRINTER-IP:8081.
V4.0 adds four-screw load-cell bed tramming, protected object exclusion for labelled multi-part prints, a temporary expert G-code terminal unlock, and a minimal read-only Moonraker-compatible bridge for BTT Panda Breath on TCP port 7125. It also corrects the Bed Mesh X orientation and keeps screw-measurement output isolated from the stored 11×11 mesh.
The release retains live telemetry and camera, temperature history, protected controls, custom material presets, ELEGOO Canvas support, 2D/3D Bed Mesh visualisation, and printing from internal memory or USB folders.
Hardware validation and testing contribution: Barry Green.
For the project's technical background, architecture discoveries and implementation record, see CC2 Research & Technical Findings.
See the V4.0 feature documentation, installation guide, CC2 Control documentation, and V4.0 release.
Downloads
| FIRMWARE V4.0 | ELEGOO-WEB v4.4.0 |
|---|---|
| Download firmware (.zip.sig) | Download portable app (.zip) |
| Centauri Carbon 2 only · Base 02.01.00.00 · CC2 Control 1.1.22 | Windows 10/11 x64 · .NET Framework 4.8 · 5.1 MiB |
| Release notes · Installation · SHA-256 | Release notes · Setup · SHA-256: 704ea08d745ecb16d193852382037a01f6f813b32a3e9422030d2b8fa8097d2f |
Copy the firmware .zip.sig unchanged to USB storage; do not extract or rename it.
Restore official ELEGOO firmware
If you need to return the Centauri Carbon 2 to the original stock firmware, the verified base firmware used during Community Firmware development and recovery testing is ELEGOO 02.01.00.00.
Download official ELEGOO firmware 02.01.00.00 directly from the ELEGOO OTA server
This link points directly to ELEGOO's OTA server. The package is not hosted, modified, or maintained by this project. Community Firmware development has been validated through repeated stock → community → stock → community installation and recovery cycles using firmware 02.01.00.00.
Note: 02.01.00.00 is the verified stock recovery/base version for this project; it is not presented as ELEGOO's latest available firmware.
Builder and source packages
SHA-256:
- Firmware:
25cefa00f43ec43ced3a8b00e4240bbcaad9a8dba48c3c2154a6fa7682f8b428 - Builder overlay:
0e0d961dfb575a3eecf299167bc6f5b6231f90456fc61c3e95b274a9aa8a37be - CC2 Control source:
654215f7a5e5cc3d21b7704fa987e9f378fa86c7d47cc3e2f118573c71bb446c
Previous firmware: V3.9 release.
