R1HA: native Kotlin <a href=Home Assistant client">

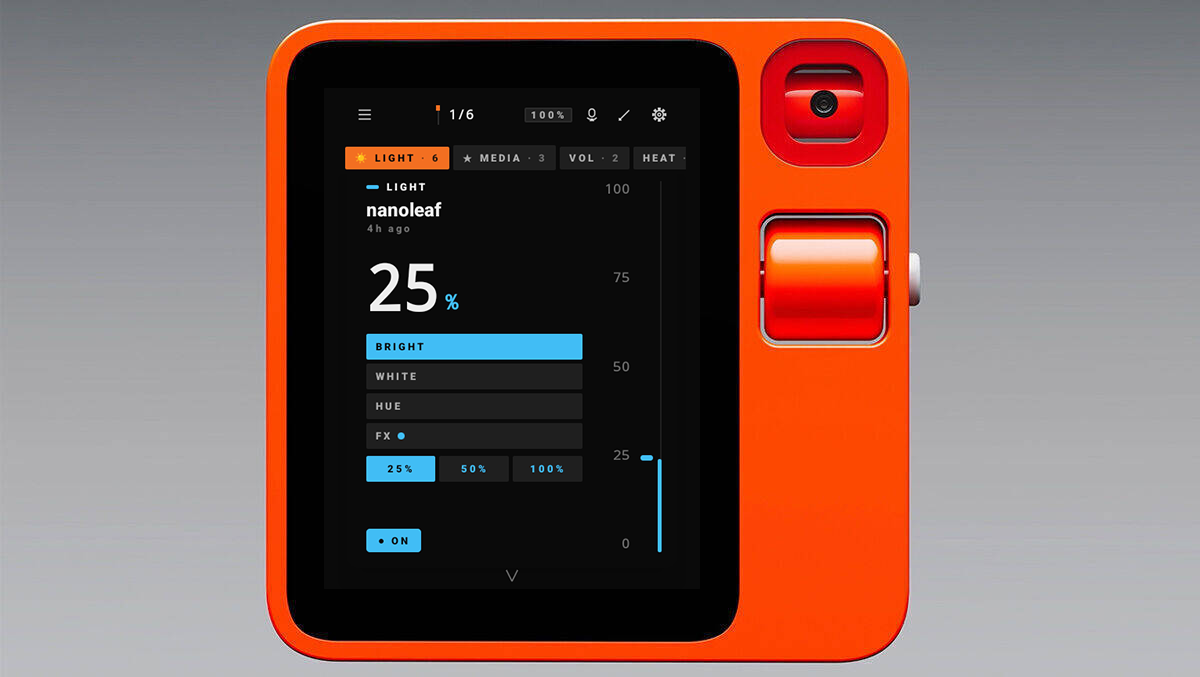

A native Home Assistant client originally built for the Rabbit R1, and equally at home on any Android 11+ phone or tablet. On the R1 the physical scroll wheel adjusts every scalar HA entity (light brightness, fan speed, cover position, media volume); on touch devices the same controls respond to drag and tap.

Where the official Home Assistant Companion app is fundamentally a WebView wrapped around HA's Lovelace frontend, this client renders everything natively in a Compose-first idiom and falls back to a Lovelace WebView only for the long tail that doesn't fit (HACS cards, automation editor, configuration panel). The card stack + scroll-wheel idiom is tuned for the R1's portrait display, but the layout adapts cleanly to handheld phones, wall-mounted tablets, and kiosk installs; touch replaces the wheel without the UI feeling like an afterthought. The trade-off: this client requires Android 11 or newer, where the official Companion app reaches back to Android 8.

Features

Awareness: the at-a-glance surfaces

  • TODAY dashboard: single screen with time-of-day greeting, current outdoor weather (with condition glyph + temperature), sun position (above/below horizon, next rise/set), active HA timers with remaining time, currently-playing media with prev/play/next transport, who's home, the next calendar event, DRAW (total power consumption summed from every power-class sensor), LIGHTS ON / CAMERAS / ALERTS metrics row, a BATTERIES LOW alert card surfaced when any battery sensor drops below 20%, and a preview of any HA persistent alerts. Pull-to-refresh; auto-refreshes every 60 s. Reachable from Settings → Dashboard or from Quick Actions (long-press hamburger). Can be set as the launch screen for kiosk-style installs via Settings → Behaviour → Start on Dashboard.
  • Quick Search: substring search across every HA entity (name / entity_id / area), with ALL / CONTROLS / SENSORS / ACTIONS filter chips. Tap a result to fire (scenes / scripts / buttons), toggle (lights / switches / etc.) or surface a detail toast (sensors). Long-press to drill into that entity's /history view in HA's web UI. Settings → Quick Search.
  • Cameras: live polling snapshots from every camera.* entity. LIST view shows the directory + state chip; GRID view shows 2-column polling tiles with 8 s cadence. Tap any camera for a fullscreen overlay at 4 s polling cadence.
  • Weather: every weather.* entity with condition glyph (☀ ⛅ ☁ ☂ ❄ ⚡ …), temperature, humidity, wind, pressure, and a 7-day daily forecast strip when HA exposes the legacy forecast attribute.
  • Who's home: person.* + device_tracker.* in one directory, home / away coloured per state, with GPS-accuracy chip and source-type chip on device_trackers.
  • Calendars: calendar.* entities with NOW pill for currently-happening events. Tap a row to drill into the next 14 days of events via HA's /api/calendars/<id> endpoint.
  • Recent Activity: HA's logbook reverse-chronologically, 12 h / 24 h / 3 d windows, full-text search. Tap a row to drill into that entity's history; long-press to open it in HA's web UI.
  • Notifications: every persistent_notification.* entity with title, message, timestamp, and DISMISS chip. Auto-refreshes every 30 s while open.
  • Areas: HA's area registry with entity count per area, expandable rows showing the full entity list. Powered by a server-side Jinja template against /api/template.
  • Zones: zone.* registry with an abstract Canvas map at the top (each zone a circle sized by its radius, positioned by its lat/lon, occupied zones filled in accent), plus a per-zone occupancy list (which persons / device_trackers are in each zone right now). An OUTSIDE bucket collects not_home people.
  • Energy: DRAW (sum of every device_class=power sensor), PRODUCTION (heuristic sum of solar / pv / grid_export / production sensors), TODAY's kWh (sum of device_class=energy total_increasing sensors), and the top 5 current consumers ranked by W draw. Native: no WebView, no Lovelace bundle.
  • History drill-in: full-screen view of any entity's recent state-change history, with a 1 h / 6 h / 24 h / 7 d window picker, a 180-dp Compose Canvas chart with explicit min/max axis labels, and a 5-row numeric summary (current / min / max / avg / sample count). Reachable via the 📈 glyph on Search rows OR by tapping any row in Recent Activity.

Control: the things you act on

  • Scroll wheel control: spin to adjust any scalar HA entity (lights, fans, covers, media players). Spring-animated slider gives a satisfying overshoot-and-settle on each turn.
  • Card stack UI with tabs: one full-screen card per favourite entity; swipe up/down to flip between them, swipe left/right (or wheel-flick) to switch between rearrangeable tab groups.
  • Per-card customization: long-press the card-stack hamburger to open a per-card CUSTOMIZE sheet, organised as nested submenus (NAME / GLYPH / POSITION / TAP / LIGHTING / LOCK / RESET). Each section ships an INHERIT chip, a DEFAULT chip, and per-field overrides; a live preview shows your changes in place. Includes a 9-way POSITION-PIP picker, per-card glyph override, and tap-action override (toggle / fire / noop / open-detail).
  • Native dashboards: read your HA lovelace/config and render every supported card type natively in Compose. Thirteen card types (Entities, Tile, Button, Light, Gauge, Markdown, Heading, Glance, Weather Forecast, Horizontal Stack, Vertical Stack, Grid, Conditional). Drag-and-drop dashboard editor with per-view overrides; an UNSUPPORTED placeholder surfaces anything we don't render yet with a one-tap fallback into the Lovelace WebView. Reachable from Settings → Dashboards.
  • HA Assist: type or 🎤 dictate a prompt and HA's conversation engine handles it; multi-turn context threaded across calls. The mic button uses the system speech recognizer so no RECORD_AUDIO permission is needed.
  • Scenes & Scripts launcher: tap-fire access to every scene.* / script.*, with substring search, kind filter chips, pull-to-refresh, and long-press for the entity_id + service name.
  • Automations: list of every automation.* entity with enabled-state chip, mode badge (single / parallel / queued / restart), running-instance count, and a relative last_triggered timestamp. Tap to toggle enable/disable; tap the right-edge RUN to fire automation.trigger with skip_condition: true; ★ to pin to the card stack. RELOAD chip in the top bar fires automation.reload.
  • Helpers: every HA helper domain (input_boolean toggles, input_number steppers, counter, input_select cycle-through-options, input_text / input_datetime read-only, input_button press, timer start/pause/cancel). Bucket-chip filters at the top group by helper kind; ★ pins frequently-used helpers to the card stack.
  • Master OFF actions: one-tap mass off for all lights, all media, or all switches from the Scenes & Scripts screen. HA's entity_id: "all" trick under the hood.
  • Alarm control panel card: native alarm_control_panel.* card with ARM HOME / ARM AWAY / ARM NIGHT / DISARM actions and an optional per-entity PIN keypad that gates every state change. PIN stored encrypted at rest alongside OAuth tokens.
  • Quick Actions drawer (long-press chrome hamburger): also doubles as the navigation drawer with a 2×4 BROWSE grid (Today · Assist · Search · Scenes · Automations · Energy · Alerts), so every major surface is one long-press + one tile-tap away.
  • App shortcuts (long-press launcher icon): Search · Assist · Today · Automations land directly on those surfaces.
  • Quick Settings tiles: bind up to four HA entities to Android's notification-shade quick-settings panel; each tile toggles its bound entity from anywhere on the phone without opening the app. Configured via Settings → Behaviour → Quick Settings tile (slots A through D).

Power tools: for the long tail

  • Templates evaluator: POST a Jinja2 template to HA's /api/template and render against live state. Side-by-side example chips (Sun elevation, On lights count, Unavailable, Areas) for one-tap discovery. RECENT history recalls past renders; tap COPY to write the result to the clipboard.
  • Service Caller: fire any HA service (automation.reload, homeassistant.check_config, persistent_notification.create, …) without leaving the device. JSON data payload editor with PASTE chip, RECENT history, result panel with copy-to-clipboard.
  • Services Browser: discoverable directory of every service HA exposes via /api/services, grouped by domain, with substring search and tap-to-copy to populate the Service Caller.
  • Updates: surface every HA update.* entity (HA Core, Supervisor, OS, add-ons, integration firmware) with installed→latest version diff, release notes, AUTO badge for entities with auto_update enabled, and a one-tap INSTALL action (with optional pre-install backup for CORE entries).
  • Repairs: HA's repairs/issues feed (the same set the HA frontend shows under Settings → System → Repairs). Severity-coloured rows; IGNORE / RESTORE buttons fire repairs/ignore server-side. Pulled live over the WebSocket.
  • Devices: native browser for HA's device registry. Substring search across name / manufacturer / model / area, expandable rows with full device metadata + the entity list each device contributes. Rename inline.
  • Integrations: native browser for HA's config_entries (Z-Wave, Zigbee, every cloud integration, every YAML-loaded platform). Per-entry RELOAD chip fires config_entries/reload; entries surface error reasons when HA flags them. Filter by domain.
  • Blueprints: list every imported blueprint (automation + script), preview the YAML, IMPORT a blueprint by URL through HA's blueprint/import WS command.
  • Logs: full HA log viewer with level filter (DEBUG / INFO / WARNING / ERROR / CRITICAL). Tail-aware: shows the last N bytes the server returned, with a COPY chip that hands the currently-filtered text to the clipboard. Auto-refreshes every 10 s.
  • Users: read-only browser for HA's user registry. Shows display name, owner flag, active flag, system-generated flag, and the auth providers associated with each user.
  • Tags: native NFC and QR tag registry editor. List every tag HA knows, rename inline, delete, and see when each tag was last scanned.
  • Statistics: native long-term recorder chart. Pick any statistic-tracked entity, choose a period (5m / hour / day / week / month), and render a Compose Canvas chart with explicit min/max axes.
  • Backups: list every backup HA's backup/info endpoint knows about (HA Core 2024.4+) with name, timestamp, size, and protected flag; CREATE BACKUP NOW button fires backup.create and refreshes the list once HA writes the new backup.
  • Media Browse: navigate any media_player's library via media_player/browse_media. Type the entity_id, drill into folders, tap to play on the bound player.
  • System Health: HA's /api/config (version, location, timezone, components, internal/external URLs), a NETWORK SECURITY panel showing the current TLS pinning + mTLS state, an inline PING chip that measures round-trip latency to /api/config, and the last ~32 KB of /api/error_log. COPY chip writes the full log to the clipboard for bug reports.
  • Lovelace WebView: in-app fallback to HA's own frontend for features we don't render natively (HACS custom cards, automation visual editor, full configuration panel). Token handoff via injected localStorage.hassTokens so no second OAuth round-trip. System back navigates the WebView's history first; only falls through to popBackStack when there's no history left.
  • External automation intent: Tasker / MacroDroid / Automate can fire HA service calls through this app by broadcasting com.github.itskenny0.r1ha.action.HA_SERVICE_CALL with ha_domain / ha_service / ha_entity_id / ha_data_json extras. Opt-in via Dev menu so the surface stays closed on fresh installs.
  • HA notification mirror: opt-in posting of HA persistent_notifications into the Android system notification shade, with a DISMISS action that fires persistent_notification.dismiss server-side.
  • Live template subscriptions: Templates screen has a LIVE toggle that subscribes to HA's render_template WS command. Every state change that affects the template re-renders in place.
  • Live activity tail: Recent Activity screen has a TAIL toggle that subscribes to HA's logbook_entry event stream. New entries prepend in real time while the REST window query still backs the initial fill.
  • NFC tag scanning: opt-in foreground reader. Tap an NFC tag against the device while R1HA is open and the app fires HA's tag_scanned event with the tag UID as tag_id.
  • iBeacon advertiser: opt-in BLE peripheral that broadcasts as an iBeacon (configurable UUID + major + minor). HA's iBeacon integration picks the device up as a device_tracker for presence / proximity automations.
  • Zigbee pairing: opens the network for joins on whichever Zigbee backend HA is using (ZHA, Zigbee2MQTT, or deCONZ), surfaces newly-discovered entities as they enrol, and lets you rename + assign an area from a single sheet without leaving the app.
  • Webhook receiver: opt-in foreground TCP listener. HA's webhook automations can POST at http://<device-ip>:<port>/webhook/<id> and the body shows up as an expandable toast. Useful for triggering on-device feedback from a server-side rule.
  • MQTT publish: one-shot client that connects to any broker, fires a single publish (configurable topic, payload, retain flag, TLS, auth), and disconnects. Implemented by hand so the APK doesn't pick up a daemon-style dependency for what's really a fire-and-forget message.
  • Voice satellite: push-to-talk surface that pipes mic audio at HA's assist pipeline (STT, conversation, TTS) over the existing WebSocket and plays the response. No wake-word yet; that needs an on-device model and is a separate cycle's work.
  • Home-screen widget: single-tile launcher widget. Tap to open the app, drop it anywhere on your launcher for one-touch access.
  • Background entity-cache refresh: opt-in JobService warms the entity cache every ~15 min while the app is closed so Quick Tile state and cold-start paint stay fresh.
  • Long-lived access token entry: alternative to OAuth for kiosk-style R1s. Paste an HA long-lived access token; stored encrypted at rest with the same AndroidKeystore-wrapped AES-256/GCM key as OAuth tokens.
  • Gesture-first navigation: swipe left for Settings, right for the Favourites picker, tap the value area to toggle on/off; small chevron-back buttons on every sub-screen plus full system-back support.
  • OAuth sign-in: enter your HA URL once and authenticate in an in-app WebView; tokens encrypted at rest with an AndroidKeystore-wrapped AES-256/GCM key.
  • Three themes: Pragmatic Hybrid (default), Minimal Dark, Colourful Cards. Switch live in Settings with a side-by-side preview.
  • Backup & restore: export/import your favourites, tabs, and settings as a single JSON file from Settings.
  • Fully configurable: wheel step (1/2/5/10%) and acceleration, haptics, keep-screen-on, display mode, on/off pill, area labels, position dots.
  • Built for the R1, scales beyond it: designed around the R1's small portrait display and physical scroll wheel (handles both DPAD_UP/DOWN and VOLUME_UP/DOWN keycodes so it works across ROM variants); on phones and tablets the same layout responds to touch + gesture so the wheel-less devices don't feel like an afterthought.

Requirements

  • Android 11 or newer on any phone, tablet, or wall-mounted kiosk display.
  • The Rabbit R1 (primary target) running LineageOS 21 GSI (Android 14) or CipherOS (Android 16).
  • A reachable Home Assistant instance (local network or remote URL).
  • For sane UI scaling on R1 LineageOS GSI: adb shell wm density 180.

Install

Download the latest r1ha-YYYY.MM.DD.apk from the Releases page and install:

adb install r1ha-YYYY.MM.DD.apk

Or copy the APK to the device and open it with a file manager.

Build from source

Prerequisites: JDK 17+, Android SDK with platforms;android-35 and build-tools;35.0.0.

git clone https://github.com/itskenny0/Rabbit-R1-HA.git
cd Rabbit-R1-HA
./gradlew :app:assembleDebug
adb install app/build/outputs/apk/debug/app-debug.apk

The local build uses today's date as the version (YYYYMMDD for versionCode, YYYY.MM.DD for versionName); CI passes APP_VERSION_CODE / APP_VERSION_NAME from the release tag.

Releasing

Releases are date-tagged. Push a tag in the form r1ha-YYYYMMDD:

git tag "r1ha-$(date +%Y%m%d)"
git push origin "r1ha-$(date +%Y%m%d)"

The release workflow builds the APK, renames it to r1ha-YYYY.MM.DD.apk, generates release notes from git log since the previous tag, and attaches the APK to a stable GitHub Release; no keystore management or repository secrets required.
