A Lovelace card for washers, dryers and dishwashers — cycle in progress, program, remaining time, door status, alerts and controls.

No brand assumed: every field is a configurable entity mapping, so it works with any integration (Electrolux, Samsung, LG, Home Connect, Miele, a smart plug + template sensors…).

Status: early preview. Feedback and issues welcome. 🇫🇷 Lire en français

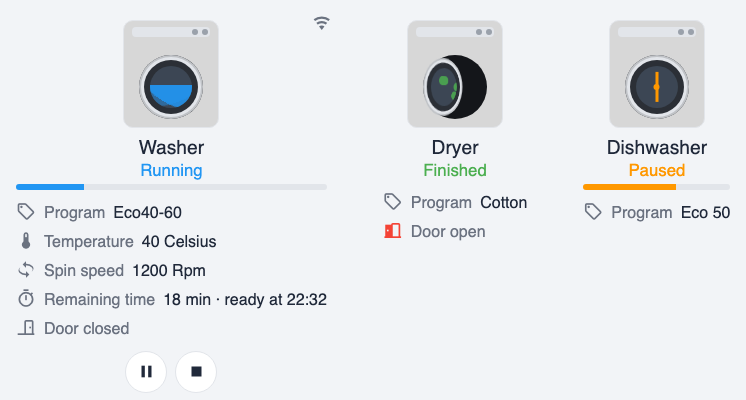

HA Appliance Card screenshot

Features

  • State normalization: Idle, RUNNING, wash, En marche… are auto-detected (accent-insensitive, 12 languages) and mapped to idle / running / paused / done / delayed / error. state_map covers anything else; unmatched states are shown as-is.
  • Animated illustration (washer water, dryer tumbling, dishwasher spray arm) — static when idle, auto-detected or set via appliance_type. The door is shown ajar on the illustration while open. compact: true keeps only the text.
  • Progress bar from a direct percentage sensor, or estimated client-side from the remaining time.
  • Program, info lines (temperature, spin speed…), door, alerts, connectivity (top-right wifi icon) — each optional and independent.
  • Start / pause / resume / stop controls, only shown for the entities you configure.
  • Visual editor: pick the state entity and the other fields are auto-suggested from sibling entities on the same device.

Installation (HACS)

Not yet in the default HACS store — add it as a custom repository:

  1. HACS → "⋮" menu → Custom repositories.
  2. Repository: https://github.com/ADNPolymerase/ha-appliance-card, category: Dashboard.
  3. Install HA Appliance Card, then add a custom:ha-appliance-card card (YAML or visual editor).

Configuration

Only state_entity is required — everything else is optional. In the visual editor, setting the state entity auto-fills the other fields when a matching sibling entity is found on the same device; each field can still be changed or cleared.

Option Description
state_entity Required. Entity reporting the appliance's overall state (any domain).
state_map Optional map: raw state → idle|running|paused|done|delayed|error.
state_show_raw true to display the raw state text instead of the translated label (color/animation still follow the detected category).
name Card title. Defaults to the state entity's friendly name.
compact true to hide the illustration and show only text.
appliance_type auto (default) | washer | dryer | dishwasher.
program_entity / program_format Program/cycle entity. clean (default) trims common "<category> Pr <name>" patterns; raw shows the state as-is.
remaining_time_entity / remaining_time_unit Remaining duration. Unit auto (default), seconds, or minutes.
progress_entity Optional 0–100 sensor; overrides the client-side estimate.
door_entity / door_open_state / door_invert Door sensor, the state meaning "open" (default on), and an invert toggle.
alerts_entity Entity whose attributes are on/off flags; any "on/true/active" attribute is shown as an active alert.
connectivity_entity / connectivity_connected_state Connectivity sensor and the state meaning "connected" (default on).
info_entities Up to 5 { entity, icon?, label? } extra info lines (temperature, spin speed…).
start_entity / pause_entity / resume_entity / stop_entity Button/switch/script entities wired to the corresponding control. Only configured ones are shown.

Example

type: custom:ha-appliance-card
state_entity: sensor.lave_linge_appliance_state
program_entity: select.lave_linge_program_uid
remaining_time_entity: sensor.lave_linge_time_to_end
door_entity: binary_sensor.lave_linge_door_state
alerts_entity: sensor.lave_linge_alerts
info_entities:
  - entity: select.lave_linge_temperature
    icon: mdi:thermometer
  - entity: select.lave_linge_spin_speed
    icon: mdi:rotate-3d-variant
pause_entity: button.lave_linge_execute_command_pause
stop_entity: button.lave_linge_execute_command_stopreset
